Product Details:
|
| Place Of Origin: | Dongguan China | Voltage: | AC230V 50HZ |
|---|---|---|---|
| Max Load: | 10kN, 20kN, (option) | Ccurate Grade: | 1 Grade /0.5 Grade |
| Brand Name: | GSKA | Function: | Tensile Test, Compression Test, 3-point Bending Test |
| Test Accuracy: | 1 % | Measuring Accuracy: | The Value ±1%/ The Value±0.5% |
| High Light: | Universal Tensile Tester,Tensile Strength Tester |
||

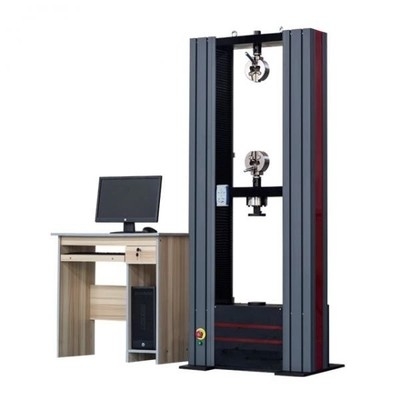

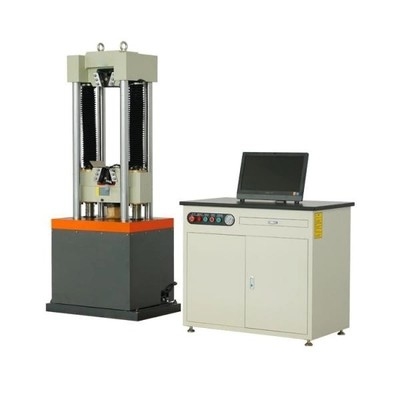

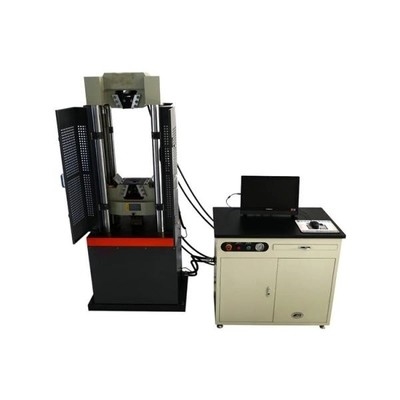

Automatic Operation Hydraulic Tensile Testing Machine Ac230v 50hz
Equipment summary:
This testing machine is used for wood testing of wood-based panel, plywood, wood, composite floor, etc. Its main testing functions are: nail holding force, adhesive strength, adhesive strength, internal bonding strength, warp bending strength and other mechanical tests.
Tensile testing machine has beautiful appearance, convenient operation and reliable performance.This machine adopts ac servo control motor and ac digital servo control system as the drive, the arc synchronous belt and synchronous belt wheel deceleration system precision ball screw driven by gear after loading, complete sample a variety of mechanical properties test.
Features:
1. A testing machine integrates various independent testing functions such as tension, compression, bending, tearing, and peeling, providing a variety of test items for users to choose;
2. The synchronous belt drives the ball screw to rotate, ensuring high-precision and stable operation;
3. 1 ~ 500mm/min stepless speed change, which provides users with convenient testing of different test conditions;
4. Multi-level limit protection, overload protection, automatic high-speed return, fault prompts and other intelligent configuration to ensure the safety of the user's operation;Portable manual control system to facilitate the user to quickly perform test operations, effectively ensure the safety of the system, and the reliability of the test operation; The equipment adopts miniaturization and structural integration design to meet the test requirements for various occasions; Professional software provides group test curve overlay analysis and statistical analysis of maximum, minimum, average, standard deviation, etc.
Technical parameter:
| Model | Artificial board testing machine |
| Max load | 500N,1KN,2KN |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | the value ±1%/ the value±0.5% |
| Tester resolution | Max load 1/200000, constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
| Effective tensile space | 1000,1200,1400mm(can be increased the height according to customer"s requirement) |
| Effective testing width | 300mm |
| Range of testing speed | 0.001~500mm/min |
| Accruacy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Return back | Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 650×360×2100mmm (lenght*width*height)(including the height of operative table) |
| Power system | Panasonic AC Servo Motor + Driver |
| Power supply | 220V,50HZ |
| Power | 0.4KW(depending on different demand of force, using different motor) |
| Machine weight | (about)260 Kg |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
