Product Details:
|
| Material: | Stainless Steel | Type: | Drying Oven |
|---|---|---|---|
| Power Supply: | 220V/50Hz | Working Chamber Size: | 350*350*350mm |
| Max. Temperature: | 500ºC | Rated Power: | 2kw |
| Warranty: | One Year | Overall Dimension: | 350*660*663mm |
| High Light: | Vacuum Brazing Furnace,Box Type Furnace |
||

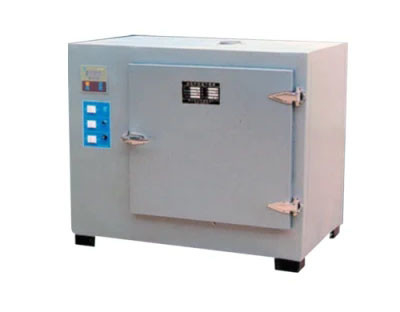

Operating Temperature 500℃ High Temperature Oven Intelligent Touch Screen

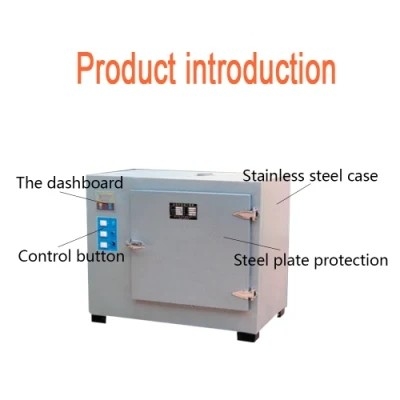

product presentation:

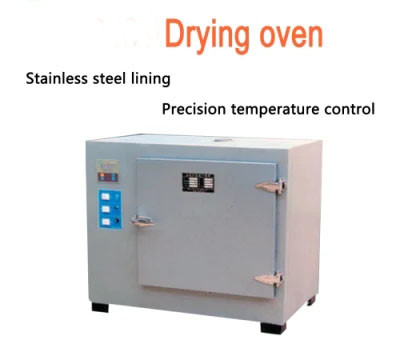

High temperature oven, through reasonable design and repeated tests, the temperature uniformity under high temperature has been well controlled, greatly improving the reliability and practicability of products.
1, the studio uses high quality steel plate or stainless steel plate, external steel powder paint.
Temperature control instrument
Temperature control instrument
2, microcomputer intelligent temperature control instrument, with setting, measuring temperature double digital display, timing, power suppression and self-setting functions, temperature control accurate and reliable.
Maintenance:
1. Clean the surface and inner cavity dust, keep the machine clean and sanitary.
2. Check whether the ammeter current is the same as normal. If there is any abnormality, inform the maintenance worker to overhaul.
3. In case of sudden power failure, the heating switch should be turned off to prevent automatic start when the call comes.
4. Check whether the fan is running normally and there is no abnormal sound. If there is any abnormal sound, shut down the machine immediately and notify the maintenance worker for repair.
6. Check vents for blockage and clean up dust.
7. Whether the fan runs normally.
8. The maintenance man checks to see if the current is normal.
9. Check whether the temperature controller is accurate. If not, adjust the static compensation of the temperature controller or the sensor correction value.
10. Check whether the heating pipe is damaged and whether the line is aging.
11. Check whether the delay device is accurate and whether the error is allowed.
specification:
|
Cycle Mode
|
Forced convection
|
||||||
|
Function
|
Temp. range
|
Incubator: RT+5-80ºC
Drying oven:80-300ºC |
|||||
|
Temp. Resolution Ratio
|
0.1ºC
|
||||||
|
Temp. Motion
|
±1ºC
|
||||||
|
Temp. Uniformity
|
Incubator:±1.0ºC
Drying oven:±2.5% |
||||||
|
Structure
|
Inner Chamber
|
Mirror Stainless Steel
|
|||||
|
Outer Shell
|
Cold rolling steel electrostatic spraying exterior
|
||||||
|
Insulation layer
|
High-quality rock wool board(with CE)
|
||||||
|
Heater
|
Stainless steel heater
|
||||||
|
Power rating
|
0.8kW
|
1.2kW
|
1.6kW
|
2.0kW
|
2.3kW
|
3.0kW
|
|
|
Exhaust hole
|
φ28mm top(with the function of test hole)
|
||||||
|
Controller
|
Temp. control mode
|
PID Two temperature section intelligent PID
|
|||||
|
Temp. setting mode
|
Touch button setting
|
||||||
|
Temp. display mode
|
B type: LED Digital Display
|
||||||
|
BE model: LCD Digital display
|
|||||||
|
Timer
|
0-9999min(with timing wait function)
|
||||||
|
Operation function
|
Fixed temperature operation, timing function, auto stop.
|
||||||
|
Additional function
|
B model: Sensor deviation correction, temperature overshoot self-tuning,
internal parameter locking, power-off parameter memory |
||||||
|
BE model: High precision digital independent temperature limiter,
4 grades & 3-speed adjustable speed fan (GP230B/BE without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory |
|||||||
|
Sensor
|
Pt100
|
||||||
|
optional accessories
|
B type: Spare shelf
BE type: Spare shelf, RS485 interface, printer, Program controller, remote control, U-disk storage; |
||||||
FQA:
