Product Details:
|
| Model Number: | GS-32P | Design Temperature: | 1200C |
|---|---|---|---|
| Input Power: | 4kw | Source Voltage: | AC 380V |
| Hearth Dimensions(mm): | 160X150X150 | Temperature Control Precision: | +-1 |
| Power Transformer: | 5kw | Origin: | Donggaun,china |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

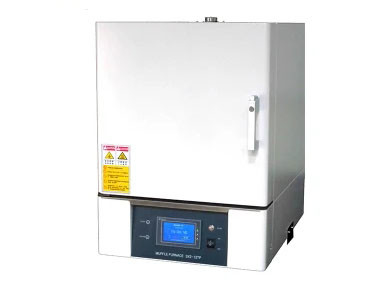

Heat Treatment 1200℃ Low Temperature Box Furnace Capacity 1-1000L
product presentation:
The low-temperature box-type heat treatment furnace is used as heat treatment for tempering and non-ferrous metals. The heating method is divided into direct heating and separation heating. Direct heating thermal efficiency is high, but the workpiece tend to be direct thermal radiation caused by high temperature electric heating element local overheating, the solution is to put insulation plate between the workpiece and the electric heating element (such as charging box, etc.)
The separation heating is carried by a hot fan to the furnace. The low temperature box type electric furnace is used less in practical application, and the most used in workshop is the well – type low-temperature box type heat treatment furnace.
specification:
| Model | GS-32P | GS-33P | GS-34P | GS-35P | GS-36P | GS-37P |
| Hearth dimensions(mm) |
200X120X 80 |
300X200X 120 |
400X250X 160 |
300X200X 300 |
500X300X 200 |
500X500X 800 |
| Furnace volume | 2L | 7.2L | 16L | 18L | 30L | 200L |
| Design temperature | 1000ºC | |||||
| Highest temperature | 950ºC | |||||
| Temperature control precision | ±1ºC | |||||
| Temperature control method | PID temperature controller | |||||
| Temperature rise rate | ≤15ºC/min for T-series,≤50ºC/min for T-series | |||||
| Input power | 2.5kw | 4kw | 8kw | 10kw | 12kw | 18kw |
| Source voltage | AC220V | AC220V | AC380V | AC380V | AC380V | AC380V |
| Heating elements | Fe-Cr alloy heating wire(0Cr25AL5) | |||||
| Sensor | K-type | |||||
| Dimensions(mm) |
480X400X 570 |
590X520X 620 |
730X570X 720 |
550X770X 550 |
770X880X 560 |
900X1100X 1200 |
FAQ:
1. How can I choose the suitable one?
A:Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
A:Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
A:Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
A:Dear customer, normal models can be delivered with 15-30days, please contact us to check transport time to your address.
5. How to deliver?
A:Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
A:Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
A:Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
A:Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
