Product Details:
|
| Place Of Origin: | Dongguan China | Temperature Display Accuracy: | 0.1℃; |
|---|---|---|---|
| Internal Material: | SUS304 Stainless Steel Plate, Thickness 1.2mm; | Voltage Acquisition Range: | 0-100V |
| Brand Name: | GSKA | Heating Time: | (5±1)℃/min; |
| Temperature Collection Range: | RT+10 ~ 1000℃; | Maximum Short-circuit Current: | 1000A |
| High Light: | Environmental Humidity Chamber,Humidity Test Chamber |
||

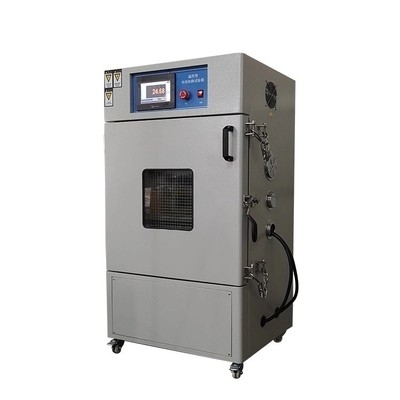

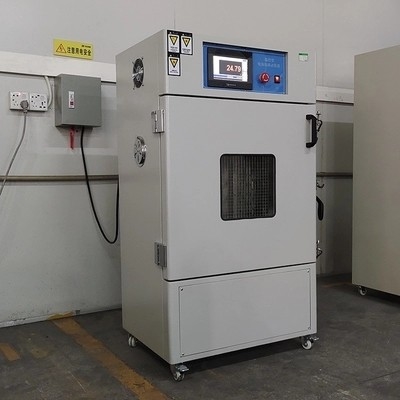

Customized Battery Test Equipment Intelligent Battery Compression Test Chamber
| 1. Inner box size | 400x400x400mm (width x depth x height); |
| 2. Dimensions | 800x700x1310mm (width x depth x height); |
| 3. Temperature range | RT+10~200℃; |
| 4. Temperature display accuracy | 0.1℃; |
| 5. Temperature stability | ±1.0℃; |
| 6. Temperature uniformity | ±2℃; |
| 7. Heating time | (5±1)℃/min; |
| 8. Internal material | SUS304 stainless steel plate, thickness 1.2mm; |
| 9. External material | 1.5mm thick cold-rolled steel plate with paint treatment; |
| 10. Box door | a single door opens to the left, and an explosion-proof chain is installed on the side of the box door; |
| 11. Smoke exhaust pipe | diameter φ100mm, located at the back of the box |
| 12. Control method | PLC touch screen control; |
| 13. Temperature collection range | RT+10 ~ 1000℃; |
| 14. Temperature acquisition channel | 1 channel; |
| 15. Voltage acquisition range | 0-100V; |
| 16. Voltage acquisition channel | 1 channel; |
| 17. Maximum short-circuit current | 1000A; |
| 18. Current acquisition channel | 1 channel; |
| 19. The internal resistance of the device loop | 80±20mΩ; |
| 20. Pressure relief door size | 200x200mm; |
Temperature control system:
1. Touch-type intelligent programmable temperature regulator: It adopts the original imported microcomputer digital temperature controller, multiple PID control functions, and it is displayed on the screen in the form of data.
2. With a wide temperature control range.
3. Using a unique balance temperature adjustment method, the ideal temperature environment can be adjusted. With stable and balanced heating capacity, high-precision and high-stability temperature control can be carried out.
4. All components for heating and cooling are fully controlled automatically by microcomputer, and the system is completely independent; equipped with an intelligent controller.
5. It has the functions of program correction, clearing, appointment start, power failure memory, etc.
