Product Details:
|
| Warranty: | 1 Year | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | GSA58W | Sample Quantity For 1time: | 22 Samples Of 150*70mm |
| Irradiance Setting Range: | 0W~90W/M² (300nm-400nm) | Dimension: | 860x800x1770mm LWH |
| Power: | Electronic | Blackboard Temperature Setting Range: | Room Temperature +20℃-90℃ |
| High Light: | Walk In Climate Chamber,Temperature Test Chamber |
||

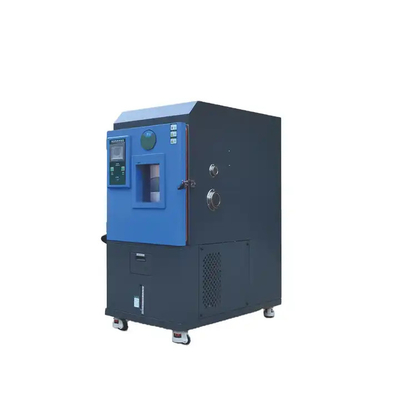

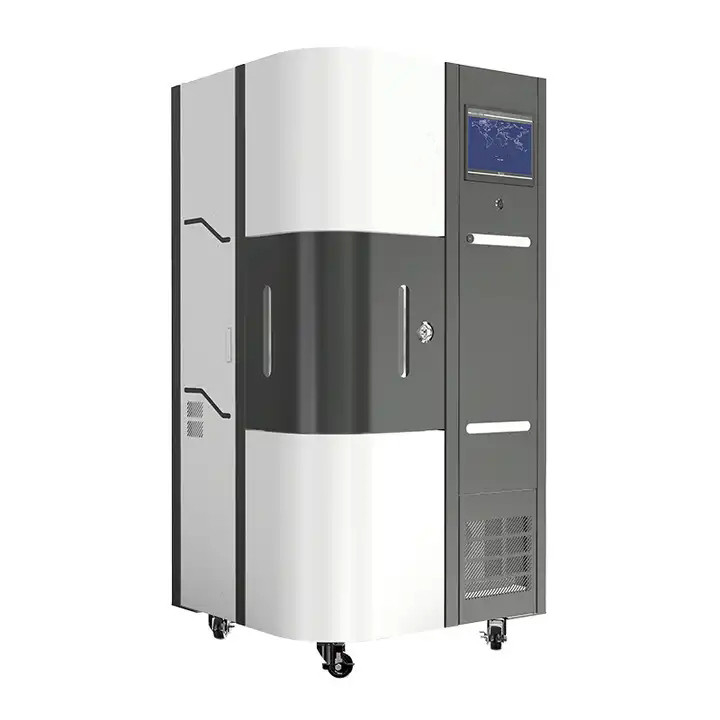

Solar Simulation Xenon Arc Weathering Climate Chamber Humidity Can Be Customized
product presentation:
The xenon arc climate chamber is equipped with a rotating sample holder. Commonly used for testing the weather resistance and light resistance of textiles. The effective exposure area is 2200cm2 (11 sample racks can accommodate 22 150x70mm samples). Equipped with air-cooled lighting fixtures, the cost is lower, the efficiency is higher, and maintenance is more convenient than water-cooled lighting fixtures. This series of new models belongs to a multifunctional test chamber, which is a rotary cylinder xenon climate test chamber with simple structure, reliable quality, and convenient use
Model | GSA58W | |||
Light Source | A 1.8KW air-cooled xenon lamp imported from the United States | |||
Lamp Rated Life | The normal service life is about 1500 hours | |||
Filter | Daylight filter (window glass filter or UV extension filter also available) | |||
Effective Exposure Area | 2200cm2 (11 sample racks, can hold 22 samples of 150×70mm) | |||
Irradiance Monitoring Method | 340nm or 420nm or 300nm～400nm(show at the same time) | |||
Irradiance Setting Range | 0～90W/m2(300nm～400nm) or 0.3 W/m2～0.75 W/m2(@ 340nm) or 0.5 W/m2～1.35 W/m2(@ 420nm) | |||
Black Panel Temperature Setting Range | Chamber temperature ~ 100°C (slightly different depending on the external environment and the set irradiance) | |||
Operation room Relative Humidity Control Range | 10%～75%(when irradiated)； 10%～95%(During spray or dark cycle) | |||
External Dimensions | 860mm×800mm×1770mm(Length x Width x Height) | |||
Power Supply | Three-phase AC 380V, 50HZ; maximum current 16 A | |||
The Maximum Power Of The Whole Machine | 5.5 KW | |||
Humidification Gas Source | 0.3~0.8Mpa | |||
