Product Details:
|
| Usage: | Hardening,sintering, And Tempering | Power: | 80kw |
|---|---|---|---|
| Chamber Size: | Can Be Customised | Dimension(L*W*H): | Chamber Size: 450x300x300 |
| Max Vacuum: | 0.4Pa Or 0.067Pa | Voltage: | 380V 3phases |
| Cooling Gas Pressure: | 2bar | Weight: | Capacity: 60kg To 2000kg |
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

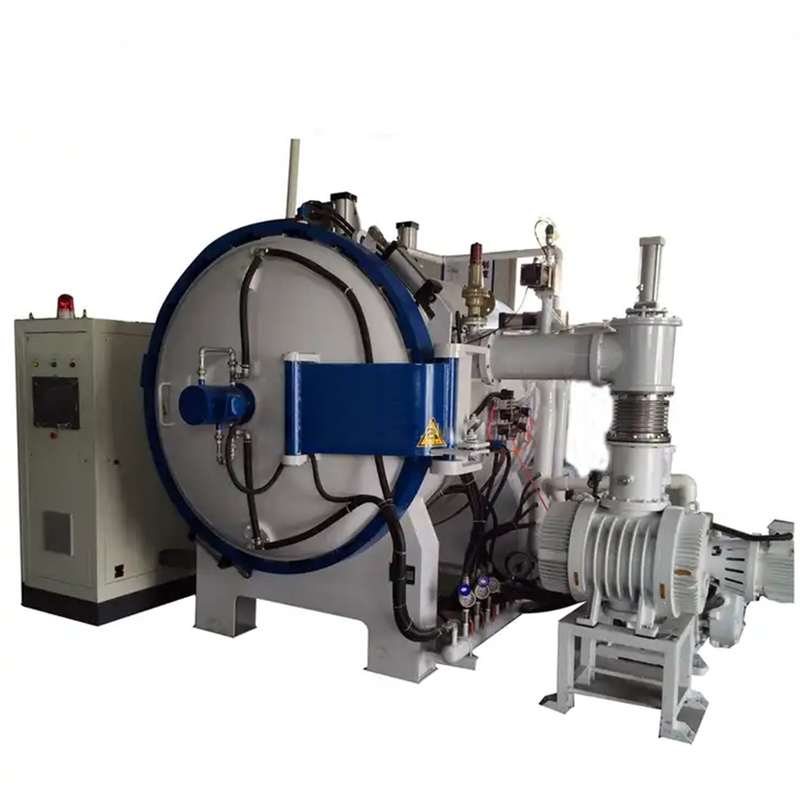

Die Steel Gas Quenching Vacuum Furnace Quenching Industrial Furnace OEM
use:
gas quenching furnace used in machinery manufacturing, aerospace and other industries. It is used for gas quenching of materials like tool steel ,die steel, high speed steel super high strength steel and also used for stainless steel, titanium and titanium alloy solution treatment. The gas quenching furnace has horizontal single-chamber structure, composed by furnace body, furnace cover, heating chamber and forced circulation cooling device etc.
What is the features of our hardening furnace?
1).Horizontal, single chamber, horizontal loading type
2).Excellent temperature uniformity realized by optimized furnace hearth.
3).For different cooling speed requirements, it can use single heat exchanger furnace hearth cooling or dual and multi-stage heat exchanger furnace hearth cooling
4).Inverter starting of air cooling motor
5).Classification of isothermal quenching(optional)
6).Heat deformation small
What is the specification of our hardening furnace:
|
|
GS3345 |
GS446 |
GS557 |
GS669 |
GS7712 |
GS8812 |
|
Max temp |
1350 |
|||||
|
Average temp |
±5 |
|||||
|
Max vacuum |
4.2×10-1Pa-----6.7×10-4Pa |
|||||
|
Heating element |
Graphite/ Moly |
|||||
|
Furnace hearth |
Graphite heating element and graphite felt heating insulation/ Moly heating element and metal heating insulation. |
|||||
|
Pressure rise rate |
0.67Pa/h |
|||||
|
Gas quenching pressure |
6-15bar |
|||||
|
Cooling gas |
N2/Ar2/He |
|||||
|
Chamber size |
300×300×450mm 400×400×600mm 500×500×700mm 700×700×1200mm 800×800×1200mm 900×900×1600mm Furnace size is customized) |
|||||
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
