Product Details:
|
| Test Pressure: | 1-4,000 Pa | Material: | Stainless Steel |
|---|---|---|---|
| Brand: | GSKA | Keyword: | Medical Lab Testing Equipment |
| Deviation: | ±2％ | Power: | Electronic |
| Brand Name: | GSKA | Place Of Origin: | Dongguan China |
| Highlight: | Lab Testing Equipment |
||

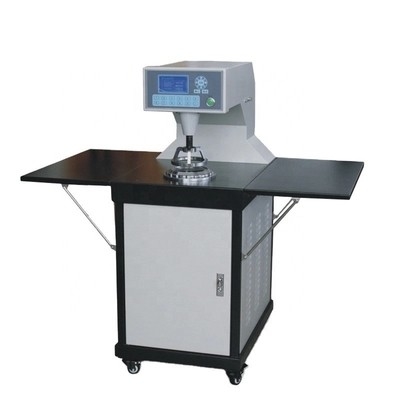

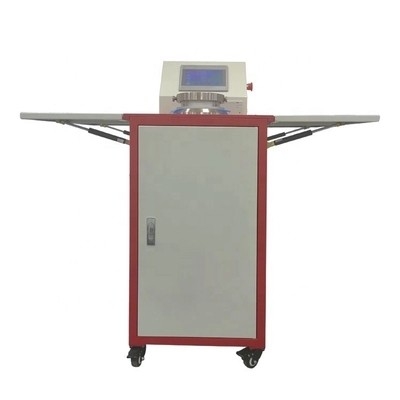

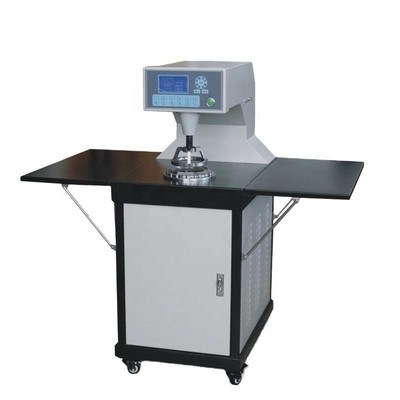

Automatic Liquid Crystal Display Fabric Breathability Tester
This is machine is to test the permeability of various textile fabrics, including industrial fabrics, nonwovens and other textile products and other breathable materials.
Feature:
1. All the test indexes could be set, digital display.
2. It is support to European and American standards and so on.
3. A small printer installed, RS 232C to connect with PC and printer.
4. Its stability, repetition, dependability are all accord with international lever.
Usage:
To determine the resistance of fabrics (woven, knitted and non-woven textile materials) to the passage of
air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.
Parameter:
1. Sample pressure range:1~4000Pa
2. Measuring permeating ratio:0.1~12000mm/s
3. Measuring error:≤±2%
4. Measuring sample thickness:≤12mm
5. Measuring area:5cm2;20cm2;50cm2;100cm2
Ø50mm(≈19.6cm2) Ø70mm(≈38.5cm2)
6. nozzle parameter:
Speficiations:
| Operation Display | LCD display.Touch screen |
| Pressure Volume | 0-4000Pa |
| Measuring Unit | mm/s, cfm, cm3/cm2/s, I/m2/s, I/dm2/min,m3/m2/min |
| Testing Area | 5cm2, 20cm2, 50cm2, 100cm2 |
| Fixed Pressure | ≤15mm |
| Measuring Permeating Ratio | ≤+/-2% |
| Permeability Ratio | 0.2-12000mm/s |
| External Dimensions | 650x550x1100mm(L x D x H) |
| Weight | 100kg |
|
Standards
|
ASTM D737 ASTM D3574 AFNORG 07-111 BS5636 DIN53 887 EDANA140.1 EN IS07,231, ENISO9,237 |
Standard:
GB/T 5453, GB/T 13764, ISO 9237, ISO 7231, ISO 5636, BS 5636, ASTM D737
DIN 53887, JIS L1096
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
