Product Details:
|
| Resistance Testing: | Mesure Range 0 ~ 1000Pa | Particle Size: | 0.3um,0.5um,0.7um,1.0um,2.5um,5.0um |
|---|---|---|---|
| Brand: | GSKA | Keyword: | Medical Lab Testing Equipment |
| Function: | Meltblown Or Mask Filtration Efficiency Test | Power: | Electronic |
| Place Of Origin: | Dongguan China | Certification: | CE SGS ROHS UL CE |
| Highlight: | Lab Testing Equipment |
||

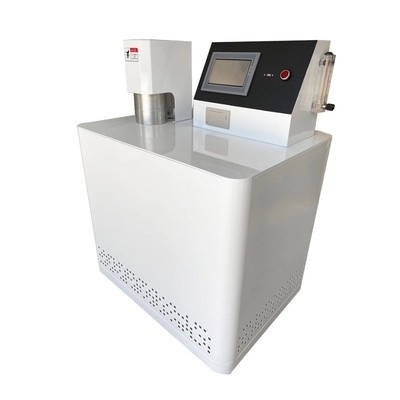

0.5MPa Antirust PFE Medical Lab Testing Equipment Anti Interfere
The mask testing machine (pfe) tester, medical face mask particle filtering efficiency tester(pfe) test machine and medical face mask particle filtering efficiency tester(pfe) meter of prodcut we have the high precision,full English control,easy operation,price competitive,and we already sold to many countries and widely acclaimed.
Equipment Overview:
It is used for testing the filtration efficiency of particulate matter of melting and spraying cloth, daily protective masks and medical masks, as well as measuring the obstruction performance of ordinary fabrics and medical protective masks to the airflow with constant flow rate. It is applicable to medical device inspection center, safety protection inspection center, labor protection inspection center, drug inspection center, disease prevention and control center, textile inspection center, hospital, mask manufacturing enterprise, etc. Scope of application: glass fiber filter material, PP filter material, laminating.
1. Flow range: (30~100) L/min, accuracy 2%
2. Filtration efficiency: (0.001~99.999)%
3. Resistance: 0~2000Pa, accuracy 2%
4. Test area: 100cm²
5. Aerosol: Sodium chloride (DOP, DEHS, optional)
6. Aerosol concentration: (12~20) mg/m³ (salinity),
7. Test mode: filtration efficiency of filter material
8. Test temperature: (25±5)℃
9. Relative humidity: (30±10)%
10. Overall dimensions: 950×600×1900mm
| Test flow range | 15 ~ 100L / Min (standard 32L / Min) |
| Test sample | 100cm2, can be equipped with multi-specification fixtures (flat masks, 3D masks) |
| Resistance testing | Mesure range 0 ~ 1000Pa |
| Accuracy 0.1Pa | |
| Efficiency testing | Measure range 40% -99.999% |
| Particle size 0.3μm | |
| Test particle size | 0.3μm |
| Fog dust source | NaCl, DEHS |
| Test time | Single test resistance: 5S |
| Efficiency and resistance simultaneous testing: 70s | |
| Power | 220V, 50Hz, 1KW |
| Gas source | 0.5MPa, 120L / Min |
Standard:
GB/T32610-2016 Technical specifications for daily protective masks
GB 19083-2010 Technical requirements for medical protective masks
GB 19082-2009 Technical requirements for disposable protective clothing for medical use
GB24539-2009 General technical requirements for chemical protective clothing
YY 0496-2011 Medical surgical masks
YYT0969-2013 Disposable medical mask
GB 2626-2006 Respiratory protective equipment self-absorption filter respirator against particulate matter
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
