Product Details:
|
| Core Components: | PLC, Pressure Vessel, Pump | Dimension(L*W*H): | 6100x1200x1200 |
|---|---|---|---|
| Power (kW): | 750KW | Weight (T): | 40 T |
| Voltage: | Online Technical Support | Warranty Of Core Components: | 1year |
| Size: | Customization | Marketing Type: | Hot Product |
| Type: | Resistance Furnace | ||
| Highlight: | Vacuum Brazing Furnace,Box Type Furnace |
||

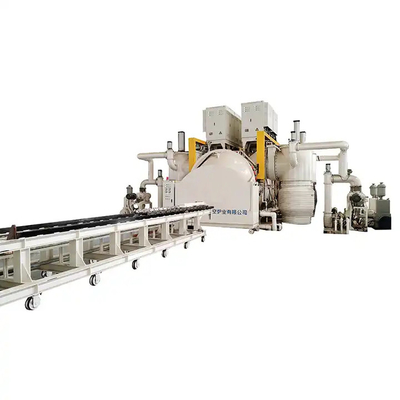

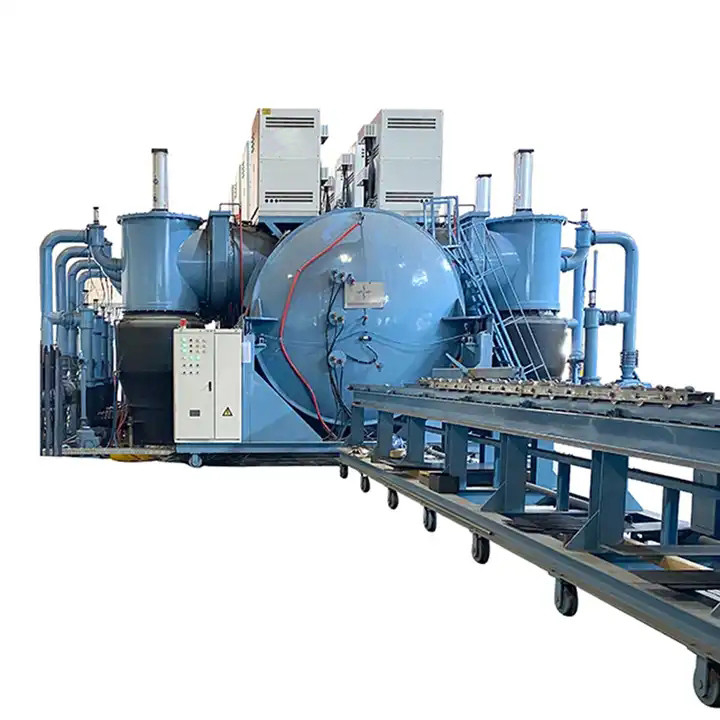

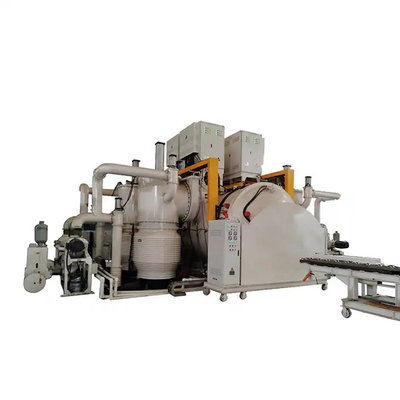

Single Chamber Vacuum Hot Pressing Sintering Aluminium Brazing Furnace
characteristic:
According to the hot pressing temperature, as well as the vacuum degree of different, can choose different heating elements. The resistance wire module can be used for heating below 1200 degrees; Above 1200 degrees, graphite is used to heat the body
The pressure range below 5 tons can be set and adjusted arbitrarily, which can be used as sample sintering or hot pressing test to avoid the waste of resources
Ranging using grating scale ranging, high precision. Accuracy up to 0.02mm
PLC+ touch screen: temperature control + voltage regulator + large current transformer closed-loop control, automatic temperature tracking, all actions by PLC to complete, touch screen combined with PLC to complete all operations, and real-time monitoring of the furnace, temperature, vacuum, displacement data can be displayed and recorded in real time and can be downloaded, the data curve can be viewed in real time
Tungsten-rhenium thermocouple is used at low temperature, and infrared thermometer is used at high temperature. Tungsten-rhenium thermocouple automatically exits at high temperature
|
Vacuum Aluminum Brazing Furnace
|
||||||
|
Model
|
Valid zone
|
Loading Capacity(kg)
|
Maximum temperature (℃)
|
Heating power (kw)
|
Ultimate vacuum (Pa)
|
Gas cooling pressure (bar)
|
|
GS-50
|
600x400x400
|
150
|
800
|
50
|
6x10-4
|
Negative pressure
|
|
GS-90
|
700x500x500
|
250
|
800
|
90
|
6x10-4
|
Negative pressure
|
|
GS-120
|
1200x600x600
|
800
|
800
|
120
|
6x10-4
|
Negative pressure
|
|
GS-300
|
2100x900x900
|
1500
|
800
|
300
|
6x10-4
|
Negative pressure
|
|
GS-300
|
2600x800x800
|
1500
|
800
|
300
|
6x10-4
|
Negative pressure
|
|
GS-310
|
2100x900x1000
|
2000
|
800
|
310
|
6x10-4
|
Negative pressure
|
|
GS-350
|
2500x1100x1100
|
3000
|
800
|
350
|
6x10-4
|
Negative pressure
|
|
GS-500
|
3500x1200x1200
|
4000
|
800
|
500
|
6x10-4
|
Negative pressure
|
|
GS-600
|
4100x1200x1200
|
5000
|
800
|
600
|
6x10-4
|
Negative pressure
|
|
GS-750
|
6100x1200x1200
|
8000
|
800
|
750
|
6x10-4
|
Negative pressure
|
|
GS-1000
|
6000x1300x1300
|
10000
|
800
|
1000
|
6x10-4
|
Negative pressure
|
|
GS-2000
|
9000x1550x1830
|
20000
|
800
|
2000
|
6x10-4
|
Negative pressure
|
|
The heating chamber of vacuum aluminum brazing furnace adopts Ni-Cr belt heating and multi-layer 1Cr18Ni9Ti reflective screen
The vacuum system is a three-stage high vacuum system composed of diffusion pump, Roots pump and mechanical backing pump; Aluminum brazing furnaces are all negative pressure furnaces, and external circulation air cooling system can also be installed according to customer requirements;
The size of valid zone can be customized according to customer requirements;

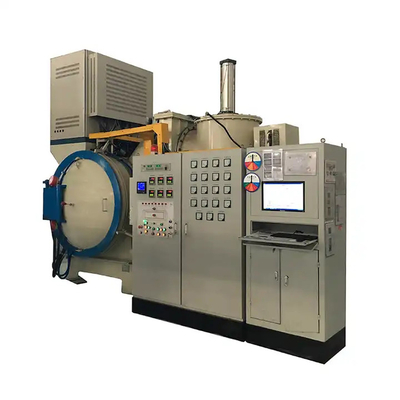

Computer control system
|
||||||
|
Product description: used for vacuum brazing of air inter cooler, oil coolers, radiators, air-conditioning evaporators,
condensers, radar network antennas, waveguide tubes and various plate-fin or tube-type heat exchangers of automobile environmental protection products. It can also be used for vacuum brazing of aluminum water-cooled plates and air-cooled boxes of electric components in industries such as high-speed rail and new energy vehicles, and brazing of separation products. |
||||||
