Product Details:
|
| Stress Range: | 30KN | Shear Box Size: | 300×300×320mm |
|---|---|---|---|
| Drawing Test Chamber Size: | 250×250×250mm | Displacement Stroke: | 50mm |
| Displacement Accuracy: | 0.01mm | Shear Stress Accuracy: | 0.5% |
| Normal Force Range: | 200KPa | Normal Force Accuracy: | 1KPa |
| Highlight: | 30KN Direct Shear Friction Tester,Geosynthetic Material Direct Shear Friction Tester |
||

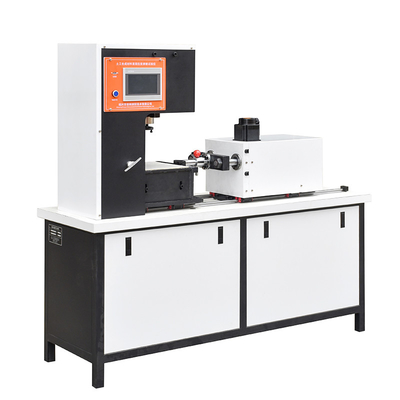

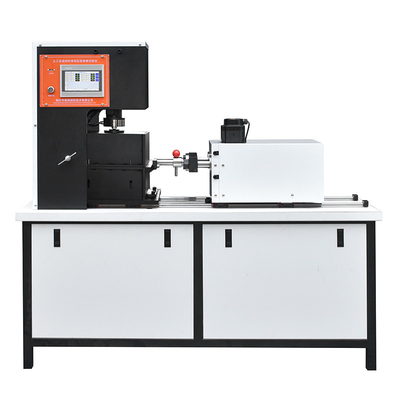

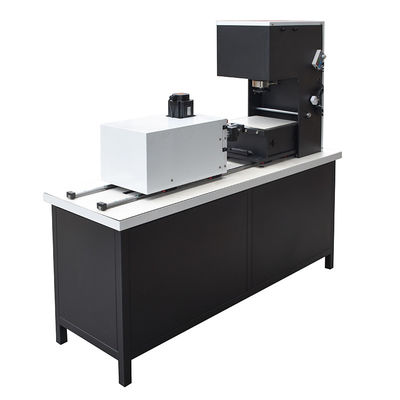

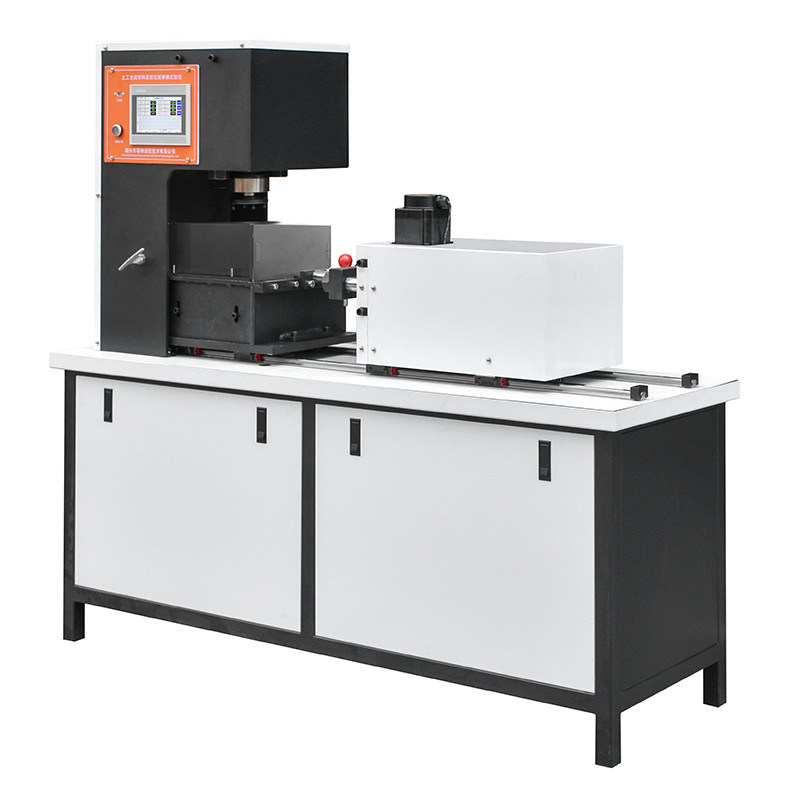

30KN Geosynthetic Material Direct Shear Friction Tester Motor Control
Product introduction
The direct shear friction tester for geosynthetic materials is an automatic test equipment for direct shear friction and drawing friction test of geosynthetic materials, which is developed by electronic sensor technology, stepper motor deceleration drive technology, pneumatic loading technology and computer information processing technology according to Highway Geosynthetic Materials Test Regulations JTG E50-2006 of Ministry of Communications.
The direct shear friction test system of geosynthetics adopts ball screw, which is used for the friction test of the drawing resistance between geosynthetics and surrounding soil and the direct shear friction test between geosynthetics and soil and rock, so as to detect the direct shear friction performance of geosynthetics.
Implementation standard
JTG E50-2006 T1129 "Test Rules for Geosynthetic Materials of Highway Engineering Direct Shear Friction Characteristics Test"
JTG E50-2006 T1130 "Test Rules for Geosynthetic Materials of Highway Engineering Drawing Friction Characteristics Test"
Code for Testing Geosynthetic Materials SL 235-2012
GB/ T176351-1998 "Geotextiles and related products - Determination of friction characteristics - Part 1: direct shear test"
Product characteristics
3.1 Ball screw, precision linear module, smooth drawing, low noise
3.2 Vertical loading adopts stepper motor control, stable pressure, easy adjustment
3.3 It has the characteristics of uniform tension and equal speed, light appearance and easy operation.
| Stress range | 30KN |
| Shear box size | 300×300×320mm |
| Drawing test chamber size | 250×250×250mm |
| Displacement stroke | 50mm |
| Displacement accuracy | 0.01mm |
| Shear stress accuracy | 0.50% |
| Normal force range | 200KPa |
| Normal force accuracy | 1KPa |
| Stepless speed control | 0.1-5mm/min |
| Power supply voltage | 220V(50HZ±1%) |
| Dimensions | 1650mm×550mm×1550mm |
FQA:
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15-30 working days, if we have finished products, we can arrange delivery within 15 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
