Product Details:
|
| Loading Method: | Static Load | Induction Method: | Precision Load Cell (sensor) |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Load Way: | Electronic Load |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Certification: | CE SGS ROHS UL CE | Model Number: | Universal Tensile Testing Machine |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

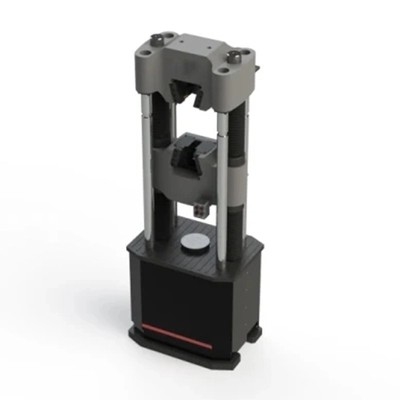

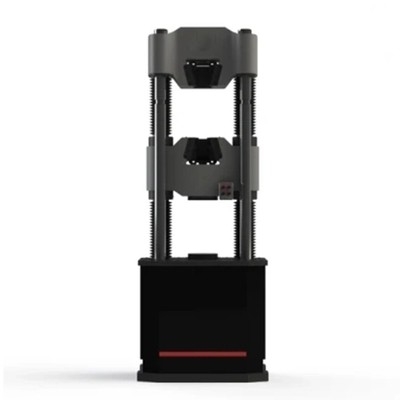

2000kn Hydraulic Universal Testing Machine For Tensile Testing
Functions and advantages:
Measuring principle:
1, tensile testing machine force value measurement is through the force sensor, amplifier and data disposal system to complete the measurement. It is known from the data mechanics that under the premise of small deformation, the strain ε at a certain point of an elastic element is proportional to the force on the elastic element, and also proportional to the elastic component. Taking the sensor of S-type testing machine as an example, when the sensor is subjected to the effect of tension P, the strain gauge is pasted on the surface of the elastic element, and since the strain of the elastic element is in direct proportion to the size of the external force P, the strain gauge is connected to the measuring circuit to measure the output voltage and then the size of the force.
2, the deformation measurement through the deformation measurement installation to measure, it is used to measure the deformation of the sample in the process of the experiment. The installation has two collets, which are connected to a photoelectric encoder mounted on the top of the measuring installation through a series of biographies. When the interval between the two collets switches, the shaft of the photoelectric encoder is driven to twist, and the photoelectric encoder will have a pulse signal output. Then the signal is processed by the processor and the deformation of the sample can be obtained.
3. The measurement of beam displacement is roughly the same as the deformation measurement, which is to obtain the displacement of the beam by measuring the output pulse number of the photoelectric encoder
Main Technical Parameter:
| Max capacity | 5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg(It is optional.) can be setting |
| Induction method : | Precision load cell (sensor) |
| Max. Load Capacity : | 5000kg |
| Force Resolution/Accuracy: | ± 0.5% |
| Accuracy class : | 0.5 |
| Resolution: | 1/1,000,000 |
| Test width: | 400mm(Standard specifications special specifications can be customized) |
| Test stroke : | Max.700 mm( included the fixture) |
| Stroke Resolution: | 0.01mm |
| Speed range: | 0.001-20inches/min |
| Reference Machine Dimension: | 800×530×1600mm (L*W*H) Support Customized |
| Power : | 1 phase 220V 50/60Hz |
| Packing | Standard Export plywood case |
| Force system | servo drives + Servo motor + precision ball screw drive |
| Control system | Mechanical transmission + TM2101 + Pulse Command and Control System control |
| Measurement and Control System | TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher |
Obtain data |
The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing |
| Displacement Control: | Displacement encoder count with four frequency technology So that the displacement of four times the resolution can up to 0.0005mm |
| Safety devices: | 1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device
|
|
|
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other standards. |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
