Product Details:
|
| Round Specimen Clamping Range(mm): | 4-9,(9-14,14-21optional) | Induction Method: | Precision Load Cell (sensor) |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Compression Plate(mm): | 100x100mm |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Brand Name: | GSKA | Certification: | CE SGS ROHS UL CE |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

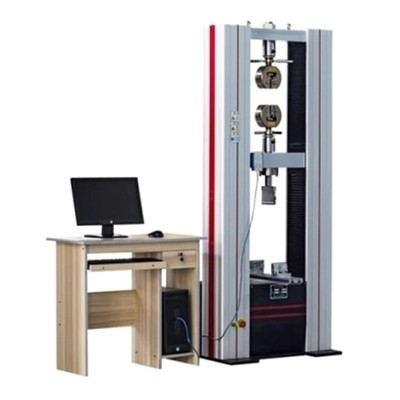

Tensile Compression Strength Testing Machine For Plastic And Metal Materials
Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
Standard:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN51221. Strain measurement meets or exceeds the following standards:ASTM E83.ISO 9513,BS 9513,BS3846,EN10002-4 Safety: the computer control servo-hydraulic universal testing
machine: EN 50081-1,EN 61010-1 Tensile test at room temperature:DIN EN 10002-1,ISO 6892, AStE A370, ASTM E8 Tensile test on reinforced steel: ASTM A615/615M,ISO10606 Compression test: DIN 1048,ISO6784,ASTM C39,ISO4506 Tensile test for bolts:ASTM F606-07 Tensile test for stands:ASTM A416,BS 5896
Features:
(1)Full computer display of testig process.
(2)Manual loading speed will meet your appropriate testing speed.
(3)Stable and reliable high intensity 2 columns and 2 reeling screw columns structure load frame.
(4)Adopt oil-hydraulic automatic clamping which an be operated by separate control box.
(5)Timely display software will provide accurate record of testing process.
(6)Report guide will create your testing report very easily.
(7)Overload protection will secure operators.
Main Technical Parameter:
| Model | GSKA-011A1 Computer system universal testing machine |
| Test speed: | 0~500mm/min |
| Max. load: | 2000kg |
| Unit: | kg, N, Ib switchable |
| Counter: | LCD display |
| Motor: | AC serve motor |
| Sample rate: | 16times/sec. |
| Speed resolution: | 0.003mm |
| Stroke: | 1000mm(exclude the grips) |
| Voltage: | AC220V |
| Dimension: | 81*48*230cm |
| N.W.: | 210kg |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
