Product Details:
|
| Main Unit Dimension (mm): | 960×620×2100 | Induction Method: | Precision Load Cell (sensor) |
|---|---|---|---|
| Weight: | 100-500Kg | Power Source: | AC220V |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Place Of Origin: | Dongguan China | Brand Name: | GSKA |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

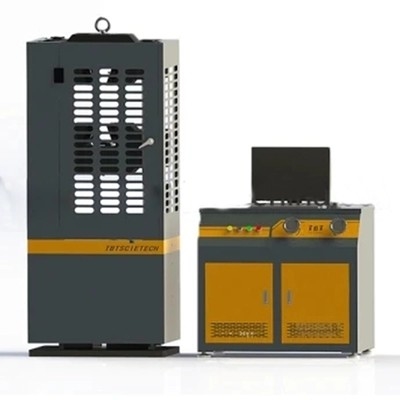

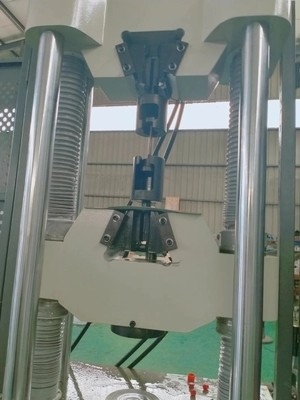

PC display servo steel bar tensile strength universal testing machine with ASTM
Product Description:
The testing machine is mainly designed for the tensile test, compression test and bending test of metal, also for non-metal of compression test, such as concrete and stone. If the proper
jigs are provided, it can be used for various tests in the laboratories of mills, factories, colleges and research units concerned.
It is featured with hydraulic loading, electronic force measurement, the load, the test process with curve can be displayed on the computer screen, and the data can be saved and printed out. It is overload protection. The oil cylinder is fitted on the bottom of the main frame, which is suitable for the compression test and all the annex will be provided for the technological tests of the metal.
Measuring principle:
1, tensile testing machine force value measurement is through the force sensor, amplifier and data disposal system to complete the measurement. It is known from the data mechanics that under the premise of small deformation, the strain ε at a certain point of an elastic element is proportional to the force on the elastic element, and also proportional to the elastic component. Taking the sensor of S-type testing machine as an example, when the sensor is subjected to the effect of tension P, the strain gauge is pasted on the surface of the elastic element, and since the strain of the elastic element is in direct proportion to the size of the external force P, the strain gauge is connected to the measuring circuit to measure the output voltage and then the size of the force.
2, the deformation measurement through the deformation measurement installation to measure, it is used to measure the deformation of the sample in the process of the experiment. The installation has two collets, which are connected to a photoelectric encoder mounted on the top of the measuring installation through a series of biographies. When the interval between the two collets switches, the shaft of the photoelectric encoder is driven to twist, and the photoelectric encoder will have a pulse signal output. Then the signal is processed by the processor and the deformation of the sample can be obtained.
3. The measurement of beam displacement is roughly the same as the deformation measurement, which is to obtain the displacement of the beam by measuring the output pulse number of the photoelectric encoder
Main Technical Parameter:
| Model | GSKA-100A | GSKA-300A | GSKA-600A | GSKA-1000A |
| Max. capacity(KN) | 100 | 300 | 600 | 1000 |
| Range | 4%-100%F.S.(full range, without gear) | |||
| Reading accuracy | Grade 1 | |||
| Error | ±1% | |||
| Resolution (F.S.) | 1/200000F.S. | |||
| Column Number | 4 | 6 | ||
| Width between two columns | 345 | 430 | 515 | 510 |
| Max tensile space(mm) | 500 | 600 | ||
| Max compression space(mm) | 500 | 600 | ||
| Bending test Distance between two points (mm) | 100-270 | 100-350 | 100-400 | |
| Round specimen clamp diameter(mm) | Ø6-Ø22 | Ø10-Ø32 | Ø13-Ø40 | Ø20-Ø40 |
| Flat specimen clamp thickness (mm) | 0-15 | 0-40 | ||
| Stroke (mm) | 150 | 200 | ||
| Pistons rise fastest speed(mm/min) | 100 | 80 | ||
| Beam rising speed (mm/min) | 310 | 250 | 310 | |
| Displacement reading relative error | ±1% | |||
| Deformation reading relative error | ±1% | |||
| Motor capacity (KW) | 2 | 2.5 | ||
| Main unit dimension (mm) | 665×490×1600 | 740×460×1900 | 850×560×2000 | 960×620×2100 |
| Oil source cabinet dimension (mm) | 1000×600×910 | |||
| Main unit net weight (kg) | 600 | 1200 | 1750 | 2200 |
| Oil source cabinet net weight(kg) | 250 | |||
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
Contact Person: Ms. Kris Zhang
Tel: 0086-0769-85914911
