Product Details:
|
| Display: | Touch Screen Display | Induction Method: | Precision Load Cell (sensor) |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Capacity Selection: | 10,20,50,100,200,300kg Optional |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Place Of Origin: | Dongguan China | Brand Name: | GSKA |
| High Light: | Tensile Test Equipment,Tensile Strength Tester |
||

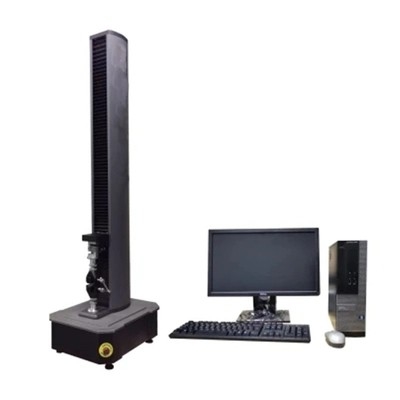

Single Column Microcomputer Control Servo Universal Tensile Testing Machine OEM
product description:

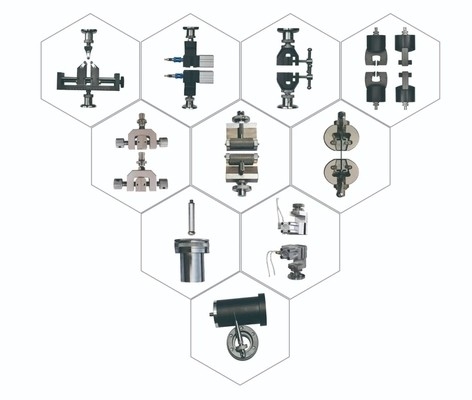

Universal Tensile Testing Machine is suitable for rubber and plastics, paper products, color printing packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wire and electronics and other industries. It can test the physical properties of various materials, finished products and semi-finished products, and can choose various fixtures for tensile, compressive, tensile, compressive, bending, tearing, peeling, adhesion, shearing and other tests.
This machine is a newly designed and developed microcomputer type tensile (compression) force testing machine. The company has completely changed the shortcomings of the traditional material testing machine, which is cumbersome, complicated in operation, and single in performance. The data acquisition and operation speed is high, the product performance is stable and reliable, the measurement accuracy is high, and the operation is simple and easy to understand.
Product Features:
1. Servo Motor Control
2. The machine includes a thermal printer, which can automatically output the test results;
3. Units can be switched arbitrarily: Strength: kN/N/kgf/gf/t/lbf;
4. Displacement: mm/cm/in;
5. Automatic homing function;
6. The overload protection function can be set;
7. Various test methods such as fixed load and positioning displacement.
8. The height and angle of the control screen are adjustable, which can better match the usage habits of various groups of people.
| Capacity selection | 10,20,50,100,200,300kg optional |
| Display | Touch screen display |
| Force measurement accuracy | better than ±1.0% |
| Force resolution | 1/10,000 |
| Effective force range | 1~100%F.S |
| Displacement resolution | 0.001mm |
| Displacement indication accuracy | better than ±1.0% |
| The test speed range | 100~500mm/min,can be adjusted arbitrarily |
| The maximum test stroke | up to 600mm, excluding clamps |
| Effective test space | 120mm front and rear |
| Force unit switching | kgf,gf ,N,kN,Ibf |
| Stress unit switching | MPa,kPa,kgf/cm2,Ibf/in2 |
| Deformation unit switching | mm,cm,in |
| Stop mode | Upper and lower limit safety setting, emergency stop button, test piece damage detection |
| Size | 50×50×160cm(W×D×H) |
| Weight | About 75kg |
| Power | High-quality stepper motor/servo motor |
| Power supply | AC220V,50/60Hz,10A or specified |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
