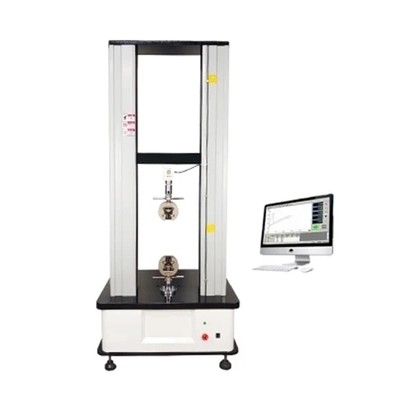

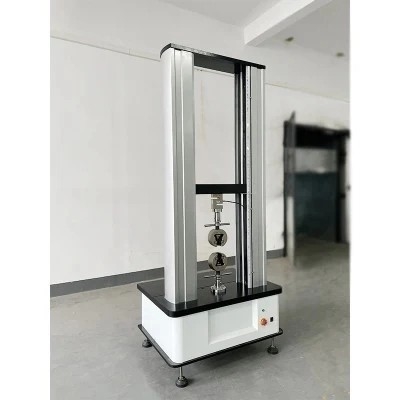

Double Column Electronic Laboratory Universal Testing Machine OEM

Double Column Electronic Laboratory Universal Testing Machine OEM
Product:
Brief: It adopts full digital power, displacement and speed three closed loop control, using AC motor and control drive system,with precision worm gear reducer and precision screw drive to achieve the transmission efficiency and signal-to-noise ratio of the best effect.
Function: Tester is used to test physical properties of elongation, compression, peeling, tearing bending, 3-point bending,
shearing of metallic and non-metallic material and so on.
Meeting standards: It can be customized to meet GB, ISO, JIS, ASTM, DIN requirement and the standard provided by client to test and data processing.
Application ranges: This machine is commonly applied in material analysis in auto-parts, fastener, aerospace, cable and wire,plastic and rubber, paper packing industries.
Features of control and data processing system:
1) With advanced chipping technology and professionally designed data gathering and amplifying system,the tester is highly integrated,reliable and convenient. Control software automatically derives data of tensile strength, yield strength, fracture strength, modulus of elasticity,

elongation.The open formula edition function allows automatic calculation of force, tension displacement deformation at any designated point. The standard in the process of control and data processing meet national requirement for testing metallic material and non-metallic material.
2) Control method: fixed speed, fixed displacement, fixed loading, fixed load increasing rate,fixed tension, fixed tension
increase rate.

3) Automatically resetting: After the test begins, measuring system automatically reset to zero.
4) Automatic shifting: automatically changes range when load changes to make sure precise collection of data.
5) Automatic saving: testing data and testing condition are automatically stored to avoid data loss caused by forgetting saving.
6) Batch testing: For specimen with same setting, batch test can be performed after setting the test sequence.
7) Display mode: data and curve are presented while testing.
8) Curve display: after testing, it is possible to revisit the curve to analyze. Move your mouse on the curve to find relative
data at each point.
9) Curves: parameters: stress-strain, force-displacement, force-time, displacement-time results are displayed and printable.
10) Parameters: Force parameters(g,kg,N,lb) Stress parameters(kg/mm2,N/mm2,Mpa,lbf/in2) Displacement parameters (m,mm,in)
11) Test report: test reports are edited and printed according to the desired format by client and can be output as Excel files.
12) Safety protection : safety mechanism is triggered when overloading is above 2~10%
13) The tester is able to automatically test and calculate mechanic property of specimen. It is also possible to intervene
manually in the analyzing process. Automatic analyzing test results are revised according to relevant standard to improve data accuracy.
Main Technical Parameter:


Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
