Product Details:
|
| Controllor: | Programmable Temperature Co | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| Highlight: | Temperature Test Chamber,Climate Test Chamber |
||

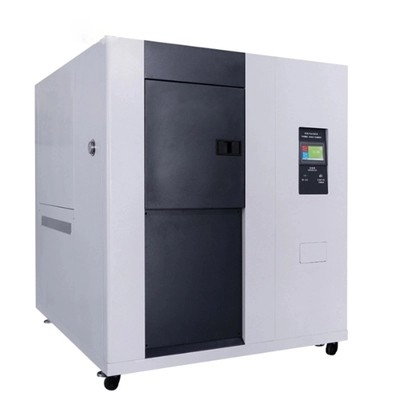

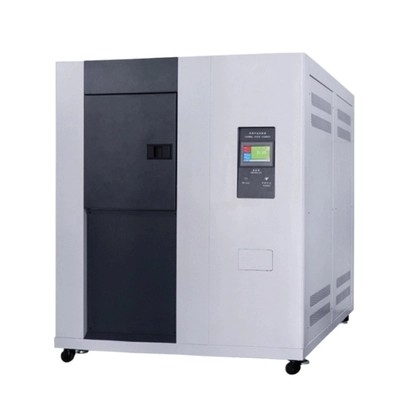

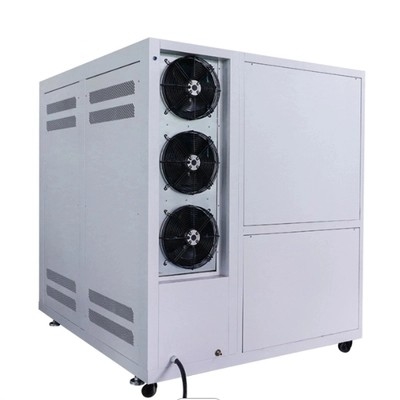

AC 380V Thermal Testing Equipment Programmable Temperature Cycling Chamber
Main Features:
1. The most advanced new and Euramerican explosion-proof handle, perfect modelling design, high texture appearance.
2. Cold and heat impact test chamber using large human-computer touch conversational LED man-machine interface controller, simple operation, easy to learn, it is stable and reliable.
3. The way of shock is changing the wind grid to pull the cold and hot temperature into testing area to enforce test.
4. Shocking time:0.1~999.9h; cycle period:1~9999times, settable.
5. Cycle and defrost ing count can be set, so does automatic defrosting or manul defrosting.
6. It shows the the status and curve when working together with explaination and eliminateing method when stoppage.
7. Euramerican imported efficient repeated compressing freezing unit, low noise, energy saving.
8. manufacturer of cold heat impact test chamber price adopts PID automatic calculating control, high precision of temperature control.
9. Can make automatic cycle shock or manual selective shock and can choose two groove or three groove cold , heat shock.
10. manufacturer of cold heat impact test chamber price can use as a high temperature boc or low temperatue box independently.
11. Use environmental refrigerants R404,R23 whitch cause no poluution to the ozone.
Applicable industries:
Industrial Three Boxes Temperature Stability Thermal Shock Tester For PCB Substrate applied to aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civiliannuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, and technical supervision departments; building materials ceramic; petroleum and chemical products, For high and low temperature
Corresponding standard:
1. GB/T2423.1-1989 low-temperature testing method
2. GB/T2423.2-1989 high-temperature testing method
3. GB/T2423.22-1989 temperature test
4. GJB150.5-86 temperature impact test
5. GJB360.7-87 temperature impact test
6. GJB367.2-87 405 temperature impact test
Specification:
| Model | GSKA-80L (A~F) |
GSKA-150L (A~F) |
GSKA-225L (A~F) |
GSKA-408L (A~F) |
GSKA--800L (A~F) |
GSKA-1000L (A~F) |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃) | |||||
| Humidity range | 20%~98% R.H | |||||
| Temp analytic accuracy/ uniformity |
0.1℃/±2.0℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Humidity control accuracy | ±0.1%;±2.5% | |||||
| Heat, cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system |
Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
|||||
| Protection devices |
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
|||||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4 | |||||
| Compressor | Original France“Tecumseh”brand | |||||
| Controller | Taiwan, Independent R&D software | |||||
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 | |||||
| Weight (kg) | 170 | 220 | 270 | 320 | 450 | 580 |
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
