Product Details:
|
| Precooling Time: | 60MIN | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

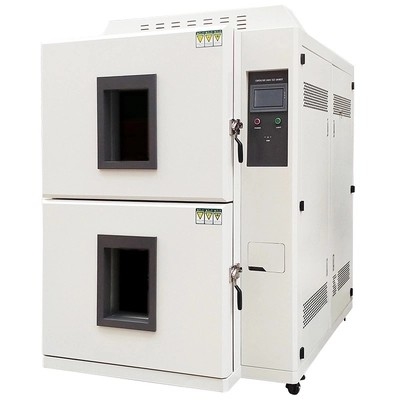

Antirust Thermal Temperature Cycling Test Chamber Dustproof SUS304 Material
Features:
1. Highly accurate temperature recovery
2.1000 cycles continuous operation (option: defrost-free operation)
3. Accurate and dependable test result (option: product temperature control*)
4. Monitoring product temperature (option: product temperature monitor with trigger function)
5. patent parallel refrigeration system improves reliability
6. Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode
7. Minimizing defrosting burden with defrost-free operation (option: defrost-free operation)
8. Parallel refrigerator control system for energy-saving control
Equipment summary:

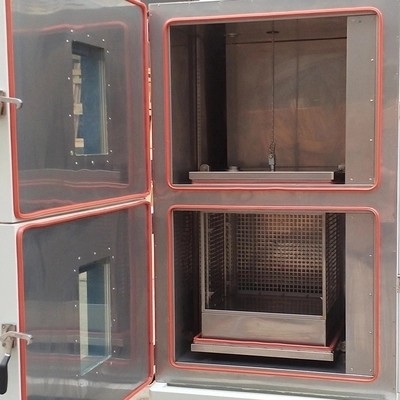

Hot and cold impact testing machines used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time, Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics.... and other materials, it can be used as a basis for improvement of their products.
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30℃
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
Product Specifications:
| Inner size: WHD(cm) | 40*35*30 | 50*30*40 | 50*40*40 | 50*50*40 | 60*40*50 | 60*50*50 |
| External size: WHD(cm) | 150*180*150 | 160*175*160 | 160*185*160 | 160*185*170 | 170*185*170 | 170*195*170 |
| Temperature range(Test Chamber) | high temperature:+60℃~+200℃;low temperature -10℃~-65℃(A:-45℃;B:-55℃;C:-65℃) | |||||
| Heating Time | RT~200℃ About 30min | |||||
| Cooling Time | RT~-70℃ About 85min | |||||
| Temperature Conversion Time | Less than 10S | |||||
| Temperature Recovery Time | Less than 5min | |||||
| Temperature Deviation | ±2.0℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Material | External material: SUS#304 Stainless steel plate | |||||
| Output Mode | Water-cooled or air-cooled,Taikang compressor in France | |||||
| Controller | TEMI South Korea | |||||
| Cooling System | Water-cooled or air-cooled,Taikang compressor in France | |||||
| Protection devices |
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,super humidity over-temperature protection switch, fuse, failure warning system |
|||||
| patrs | Watching window;50mm testing hole; partition plat | |||||
| Power | AC380V 50/60Hz Three-phase four-wire ac power | |||||
| weight (kg) | 750 | 790 | 830 | 880 | 950 | 1050 |
Uses:
This product is used to provide large parts industry,semi-finished products of the large temperature and humidity test environment equipment.
Character:
Content product can be any enlargement,reduction,designed with the needs of the user environment.
Modualar library board,easy accessibility,simple structure with a zero coefficient of ozone green(HFC)refrigerants R404,R23.Spacious,bright and large windows proof room with high brightness,so that users can observe the walk-in constant temperature and humidity conditions indoors laboratory testers.A full range of security devices and power memory to ensure the safety of users using the machine itself and blow ceiling type,reduce testing indoor sample of wind speed on the sample able to do low-speed high uniformity requirements.It can be connected to the computer,the recorder.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
