Product Details:
|
| Cooling Type: | Air Cold | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Screen Size &Display: | 7" TFT-LCD | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

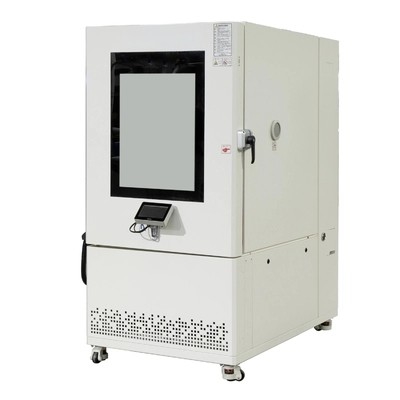

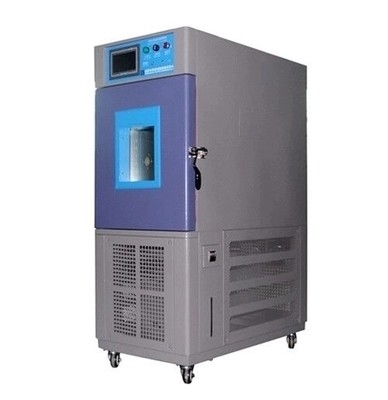

SGS 150L Lab Temperature Humidity Chamber SUS 304 Stainless Steel
Accelerated life testing chamber, rapid chamge temperature testing systems is widely applied for quality inspection for all types of electric products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries by constant high low temperature change, damp heat etc environment simulation reliability test.
Features:
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).
6. Controller imported LCD display screen can be displayed measuring values and setting the value and time.
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position.
International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat
Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3
| Inside size WxHxD (cm) |
40x50x40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 | 100x100x80 | 100x100x100 |
| Outside size WxHxD (cm) |
90x136x94 | 100x146x104 | 100x161x117 | 110x171x137 | 130x181x137 | 150x186x137 | 150x186x157 |
| Temperature range |
-70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
||||||
| Humidity range | 20%~98%R.H. (10%-98%R.H/5%~98%R.H is the specific codition) | ||||||
| Accuracy/ uniformly |
±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | ||||||
| Accuracy / volatility |
±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. | ||||||
| Heating / cooling time |
About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) | ||||||
| Inside material | Stainless steel SUS 304# | ||||||
| Insulation material |
High-temperature high-density amino acid ethyl ester foam insulation materials | ||||||
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/ two-stage compressor(-40℃~-70℃) |
||||||
| Protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system |
||||||
| Accessories | recorder(purchase),view window,50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball | ||||||
| Controller | TEMI580, 880 digital controller from South Korea | ||||||
| Compressor | France “Tecumseh” | ||||||
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||
Application :
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
More produced:
Temperature Humidity Test Chamber
Walk-in Aging Chamber
Environmental Test Chambers
Thermal Shock Chamber
Fast Temp. Change Test Chamber
Vibration Shaker
Environmental Vibration Chamber
Mechanical Shock Tester
UV Chamber
Xenon Chamber
highly accelerated stress testing
Salt Spray Test Chamber
Paper Packing Test Equipment
Customers Support Services
1. Installation;
2. Training (Training customer employees);
3. Calibration;
4. Preventative maintenance;
5. Replacement parts;
6. Assistance via phone or internet;
7. On-site diagnosis and repair/online diagnosis and repair;
