Product Details:
|
| Temperature Range: | -40℃ To 150℃ | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | PortSUS#304 Stainless Steel For Internal Chamber: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

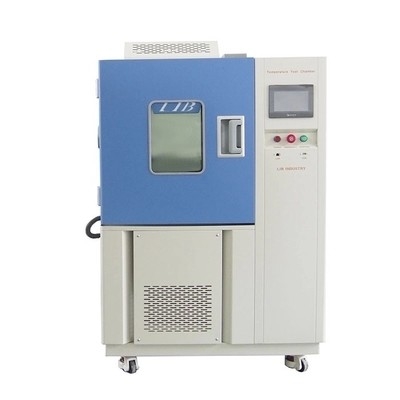

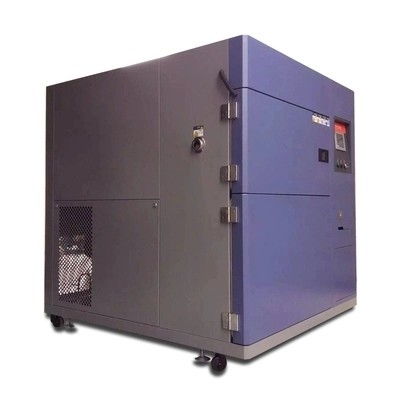

65dBA Rainproof Thermal Cycling Equipment 408L Temperature And Humidity Chamber
Features:
1. Has the USB download function, with RS232 interface, the curve of the software, do notneed recorder
2. With vacuum glass observation window, direct observation of the function more effectively
3. The refrigerant servo control valve flow calculation. Save electricity 30%, dormancy in flow time, energy saving more than 50%
4. Preventing electromagnetic interference by SGS certification controller;At least 32 digital soft path matching with The Times development and software upgrade function
5. Defrost cycle (800 cycle defrost time, defrosting guarantee within 2 hours each time, integration test r each 25% of the energy saving province electricity)
Technical Parameters:
| Name | Thermal Cycle Test Chamber | |
| Internal Dimension (mm) | 400*500*500 | 500*600*750 |
| Overall Dimension (mm) | 860*1050*1620 | 960*1150*1860 |
| Interior Volume | 100L | 225L |
| Low type | A: -40℃ B:-70℃ C -86℃ | |
| Temperature Range | -20℃ ～+150 ℃ | |
| Temperature Fluctuation | ± 0.5 ℃ | |
| Temperature Deviation | ± 2.0 ℃ | |
| Cooling Rate | 1 ℃ / min | |
| Heating Rate | 3 ℃ / min | |
| Refrigerant | R404A, R23 | |
| Controller | Programmable color LCD touch screen controller | |
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | |
| Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel | |
| Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
| Power Supply | 220V 50Hz / 380V 50Hz | |
| Maximum Noise | 65 dBA | |
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH |
|
Characters:
1. Use special machine structure which can meet temperature and humidity well distribution.
2. Use environment-friendly refrigerant which meets international standard.
3. LCD display screen uses dialog box operating easy and user-friendly.
4. When fault occurs, display failure causes to help troubleshooting.
5. Have safety protection equipment and power failure memory.
6. Connect with computer, recorder(under user needs)
Uses:
This product is used to provide large parts industry,semi-finished products of the large temperature and humidity test environment equipment.
Character:
Content product can be any enlargement,reduction,designed with the needs of the user environment.
Modualar library board,easy accessibility,simple structure with a zero coefficient of ozone green(HFC)refrigerants R404,R23.Spacious,bright and large windows proof room with high brightness,so that users can observe the walk-in constant temperature and humidity conditions indoors laboratory testers.A full range of security devices and power memory to ensure the safety of users using the machine itself and blow ceiling type,reduce testing indoor sample of wind speed on the sample able to do low-speed high uniformity requirements.It can be connected to the computer,the recorder.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
