Product Details:
|
| Cooling Type: | Water Cold | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Screen Size &Display: | 7" TFT-LCD | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

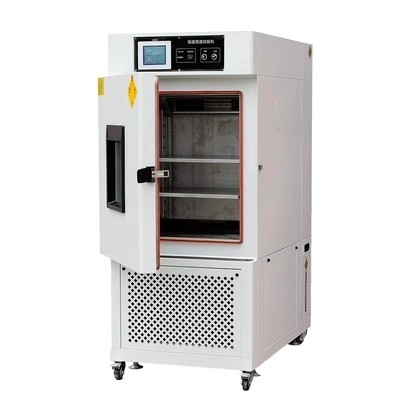

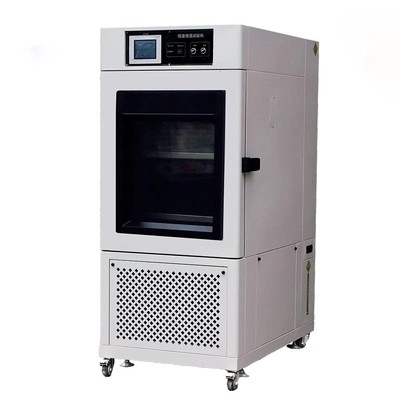

Programmable 80 L 150L Environmental Reliability Program Temperature Humidity Test Chamber
High-low temperature humidity Climatic Test Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Control
English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.
Product features:
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Fully welding process ensure more beautiful appearance.
Customized cable port ensure the specimen can connect the power during climate test.
Multiple safety protection system ensure the safety during chamber running.
Seperate water system and electricity system ensure chamber safety.
| Power | 3∮ AC380V 50Hz | Weight | 360kg/380kg | ||
| Interior size | 60*75*50 /50*60*50 | Exterior size | 110*167*110/108*167*120 | ||
| Customized size | acceptable | Cooling type | Water cold | ||
| Temperature range | --70℃ ～150℃ | Humidity range | None | ||
| Temp.& humidity control fluctuation | ≤±0.5℃, | Indication resolution | 0.01℃, | ||
| Temp.& humidity Uniformity | ≤±1.5℃, (Put 9 sensor into inner chamber with 9 different location to get uniformity ) | ||||
| Heat up&Cool down time | ≤5℃/min for heating and cooling | ||||
| Chamber materials |
SUS#304 stainless steel for Inner chamber with thickness 1.5mm Steel plate for external chamber with thickness 1.5mm |
||||
|
Insulation materials |
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm | ||||
| Door |
Hinged door, single door open in the central cabinet ( the front of the chamber) Heat distribution on the door (automatic adjustment) anti-frost, anti-condensation insulating glass observation window Door electric equipment (automatic adjustment) anti-frost, anti-condensation device Preparation inside the door lights (LED longevity and efficient light source) |
||||
| Accessories |
Communication interface: RS232 Test hole: diameter 50mm 1 pieces (size can be customized) Observation window: Tempered glass (size can be customized) One light: 9 w/AC220V Foot wheel: four castor, four balance goblet Sample shelf: stainless steel rack 2 pieces In the total bearing weight (bottom and rack combined) no more than: 200 kg |
||||
| Control panel | Controller+ operation button+over heating protection device +RS232 and USB interface | ||||
|
Air Circulation& Drain system |
(1) Centrifugal fan & imported motor (2) Reverse uniflow(air flow direction) (3) Flow-throws wind (4) Inner air circulation fan, wind channel and stainless steel cycle fan, through the top window and air diffuser, the wind will out uniformly from the top, which could reach the purpose of control temperature uniformly. (5) Drain system uses swirl type outlet and U-trap deposition unit
|
Application :
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
