Product Details:
|
Customized Support: | OEM, ODM, OBM | Heat Up Rate: | About 3℃~5℃/min; Can Be Custom |
---|---|---|---|
Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
Keyword: | Walk In Test Chamber | Cooling Rate: | 1 ℃ / Min |
Brand: | Walk In Test Chamber | ||
High Light: | Temperature Test Chamber,Climate Test Chamber |

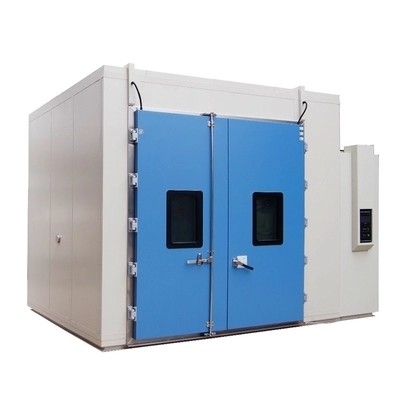

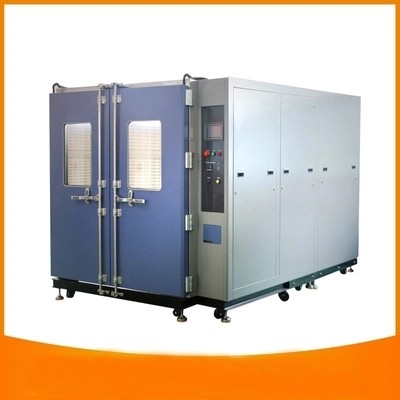

OBM High Low Temperature And Humidity Test Chamber Multipane Antiwear
Optional accessories:
1. Cable Port: Two size of cable port is available: &50mm, &100mm.
2. Double door
3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
6. Entire ceiling blow-out duct
7. The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)
8. Dehumidifier
9. The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21°C,23%RH)for electrostatic reliability
tests.
10. Temperature and humidity recorder
11. 100mm width recording paper with 6 dots
12. 180mm width recording paper with 12 dots
13. Status indication lamp
14. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.
15. Water purifier
16. Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.
17. Power socket
Features:
1. Realize temperature constant value control and program control;
2. The entire data recorder function (optional),which for record and retrospect,Protect/heater for short circuit protection, ensure the stability of air volume and heating during the operation.
3. With USB connector WAN communication function,makes communication equipment and software extensions to meet customers' needs.
4. Adopt international popular refrigeration control mode, can automatically adjust the compressor refrigeration power of 0% ~ 100%, compared with the traditional thermal equilibrium temperature control mode and energy consumption reduced by 30%.
5. Refrigeration and electric control the key parts adopt international famous brand, make the whole of the equipment has improved the quality and guarantee.
6. Customize size/customize indicators/customize various optional features
Product Name | Walk in Environmental Chamber Temperature Humidity Test Chamber | |
Model | Walk-Ins | |
Internal dimension (mm) | As request | |
Overall dimension (mm) | As request | |
Temperature range | A: -20℃ ~+150 ℃
B:-40℃ ~+150 ℃
C:-70℃ ~+150 ℃
|
|
Humidity range | 20% ~ 98% RH | |
Temperature fluctuations | ± 0.5 ℃ | |
Temperature deviation | ± 2.0 ℃ | |
Humidity deviation | ± 2.5% RH | |
Heating rate | 3 ℃ / min | |
Cooling rate | 1 ℃ / min | |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
Temperature Resolution | ± 0.001 ℃ | |
Humidity sensor | Dry and wet bulb sensor | |
Power Supply | AC220V 50HZ | |
Environmental conditional | 5℃~+40 ℃ ≤85% RH |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
