Product Details:
|
| Application: | Programmable Environmental Testing | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Condenser: | Water-cooled Condensing Agent |
| Screen Size &Display: | 7" TFT-LCD | Temperature Uniformity: | ±2.0℃ |
| Customized Support: | OEM | Controller Resolution: | ±0.3℃；±2.5%RH |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

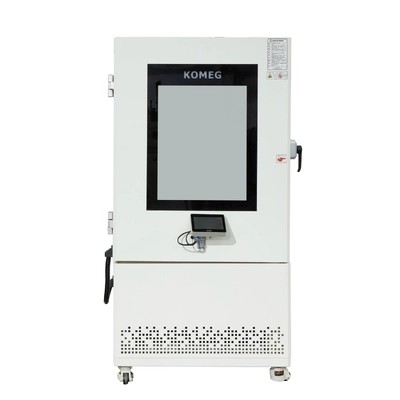

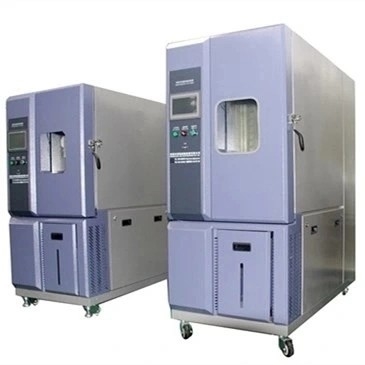

220V PLC Controlled Temperature Humidity Chamber Explosion Proof
Standards:
The performance index meets the requirements of GB5170, 2, 3, 5, 6-95 verification methods for basic parameters of environmental test equipment for electrical and electronic products low temperature, high temperature, constant humidity and alternating humidity heat test equipment
Basic environmental test procedures for electrical and electronic products test a: low temperature test method GB 2423.1-89 (IEC68-2-1)
Basic environmental test procedures for electrical and electronic products test B: high temperature test method GB 2423.2-89 (IEC68-2-2)
Basic environmental test procedures for electrical and electronic products test CA: constant damp heat test method GB/T2423.3-93 (IEC68-2-3)
Basic environmental test procedures for electrical and electronic products test Da: alternating damp heat test method GB/T2423.4-93 (IEC68-2-30)
Control:
English LCD display LCD touch-panel, the screen on the input data, and programmable temperature and humidity, backlight adjustable 17, curve, curve of setting/display value. Can display a variety of alerts, failure occurs through the screen display, eliminating failures, eliminate misuse. Multi-PID control functions, sophisticated monitoring functions, and the data displayed on the screen.
Features:
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).
6. Controller imported LCD display screen can be displayed measuring values and setting the value and time.
| Inside size WxHxD (cm) |
40x50x 40 |
50x60x 50 |
50x75x 60 |
60x85x 80 |
80x95x 80 |
100x100x 80 |
100x100x 100 |
| Outside size WxHxD (cm) |
90x136x 94 |
100x146x 104 |
100x161x 117 |
110x171x 137 |
130x181x 137 |
150x186x 137 |
150x186x 157 |
| Temperature range |
-70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃) |
||||||
| Humidity range | 20%~98%R.H. (10%-98%R.H/5%~98%R.H is the specific codition) | ||||||
| Accuracy/ uniformly |
±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. | ||||||
| Accuracy / volatility |
±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H. | ||||||
| Heating / cooling time |
About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition) | ||||||
| Inside material | Stainless steel SUS 304# | ||||||
| Insulation material |
High-temperature high-density amino acid ethyl ester foam insulation materials | ||||||
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/ two-stage compressor(-40℃~-70℃) |
||||||
| Protection | compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system |
||||||
| Accessories | recorder(purchase),view window,50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball | ||||||
| Controller | TEMI580, 880 digital controller from South Korea | ||||||
| Compressor | France “Tecumseh” | ||||||
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
