Product Details:
|
| Preheating Temperature Range: | 60℃--200℃ | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

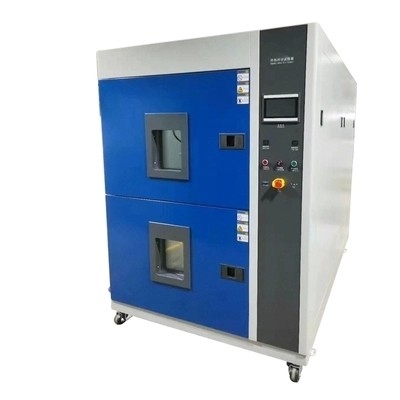

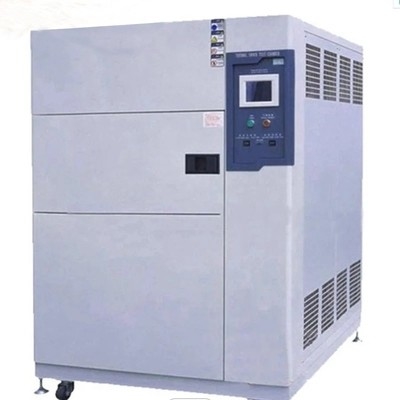

6-9KW High Low Temperature Chamber , Thermostatic Thermal Cycling Oven
Thermal Shock Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics and other materials can be used as a basis to improve their products or reference.
| Product Name | Thermal Shock Test Chamber |
| Internal size | 80L: W500*H400*D400mm(Can be customized according to customer needs) |
| External size | 80L:W1400*H1850*D1500mm(Can be customized according to customer needs) |
| Temperature shock range | High temperature +60℃~ +150℃ Low temperature -40℃~ -10℃ |
| Preheating temperature range | 60℃--200℃ |
| High temperature tank heating time | RT~+200℃≤30min (RT:+10~+30℃) |
| Precooling temperature range | (-10)℃~ (-70)℃ |
| Low temperature tank cooling time | RT~-70℃≤50min (RT:+10~+30℃) |
| Temperature fluctuation | ±1.0℃ |
| Temperature uniformity | ±2.0℃ |
| Throttle conversion time | ≤5S |
| Impact recovery time | (-40)℃~(+150)℃≤5min |
| Heating system | Fin-type radiating tube-shaped stainless steel electric heater 1, high temperature tank 9KW 2, low temperature tank 6KW |
| Compressor | Original imported French "Taikang" brand fully enclosed compressor |
| Condenser | Water-cooled condensing agent |
| Evaporator | Multi-stage automatic load capacity adjustment of bullying fins |
| Expansion valve | Danvers imported original components from Denmark |
| Refrigerant | The latest environment-friendly refrigerant R404A imported from USA |
Advantage:
Ø 35 years experiences
Ø 24 hours online
Ø OEM,ODM
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services:
Ø Training (Training customer employees)
Ø Preventative maintenance
Ø Replacement parts
Ø Calibration
Ø Installation
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Structure:
Integral, the top is preheating tank (with test chmaber door), the bottom is precooling tank, the studio is preheating tank and precooling.The mobile metal pod is between the slots, the electric control cabinet and the refrigeration unit are behind, and the main control interface is located in the test.Square before the inspection door. The gate is opened in the width direction. Each slot area is equipped with an independent circulating air duct system: wind motor,Centrifugal fan blade, vane.
