Product Details:
|
| Resolution: | 0.01 Degree | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Customized Support: | OEM | Condenser: | Water-cooled Condensing Agent |
| Impact Recovery Time: | (-40)℃~(+150)℃≤5min | Temperature Uniformity: | ±2.0℃ |
| Power: | 220V , 50Hz | Application: | Electrics |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

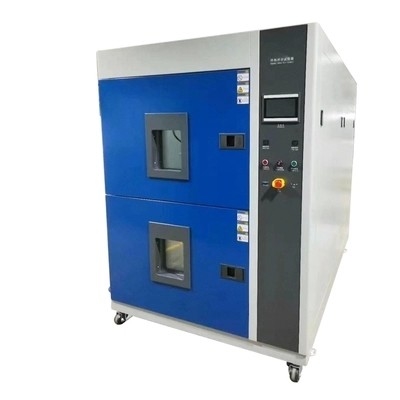

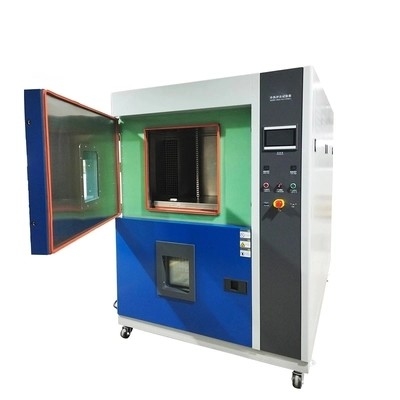

OEM Three Box Antiwear Thermal Shock Chamber Test Machine 10Kg Multifunctional
The three-box cold and thermal shock test chamber is designed and manufactured according to user requirements. It is suitable for high and low temperature impact test of complete machines and parts of aviation, aerospace, military, naval, electrical, electronic and other products and storage in high temperature or low temperature environment. and test. It is for users to carry out corresponding climatic and environmental accelerated tests on the whole machine (or components), electrical appliances, instruments, materials, coatings, coatings, etc., so as to evaluate the test sample or the test behavior of the test sample.
Product Features :
1. The product is beautiful in appearance, reasonable in structure, advanced in technology and exquisite in material selection, with simple and convenient operation performance and reliable equipment performance. The equipment is divided into three parts: high temperature box, low temperature box and test box. It adopts a unique thermal insulation structure and heat storage and cold storage effect. During the test, the object to be tested is completely still, and the cold and hot air are switched to the test area. To achieve the purpose of thermal shock test.
2. The most advanced measuring device is adopted, and the controller adopts a large-scale color LCD human-machine touch interactive LCD human-machine interface controller, which is easy to operate, easy to learn, stable and reliable, and displays the complete system operating status, execution in Chinese and English. and set the program curve.
3. With 96 test specifications independently set, the impact time is 999 hours and 59 minutes, and the cycle period can be set from 1 to 999 times. Time to start and stop work automatically;
4. There is a test hole with a diameter of 50mm on the left side of the box, which can be used for external power load wiring test components.
5. The function of three different conditions of high temperature, low temperature and hot and cold shock can be independently set, and when the cold and hot shock conditions are executed, the two-slot or three-slot type and the function of cold punching and hot punching can be selected. The function of high and low temperature testing machine.
6. Equipped with fully automatic, high-precision system loop, any mechanical action, fully P.L.C locking processing, all using P.I.D automatic calculation control, high temperature control accuracy.
| Temperature range | A.high-temperature : +60 degree to +150 degree |
| B.low-temperature : -10 degree to -40 degree | |
| Control temperature | ±2 degree |
| resolution | 0.01 degree |
| Heating time at high-temperature region | From RT to 150 about 35min (RT is from 5 degree to 30 degree). |
| Cooling time at low-temperature region | From RT to -40 degree about 50min (RT is from 5 degree to 30 degree) |
| Moving time and temperature recover time | A. testing bastet moving from high-temperature to low-temperature spend 10sec |
| B.after exchanging the temperature,the tempreature recovery time: 3min to 5min (Stabilization time ≥ 30min) | |
| Device noise | Below 75dB. |
| Weight | 10Kg |
| Testing region(hot and cold) | 50cm(W)*50cm(H)*50cm(D) |
| Outside size | 140cm(W)*180cm(H)*142cm(D) |
| Testing basket size | 30cm(W)*40cm(H)*30cm(D) |
| Inside material | SUS#304 Cold-Heat-resistant stainless steel |
| Outside material | SUS#304 Cold-Heat-resistant stainless steel |
| Insolution material | High-density glass wool and high strength PU foam insulation |
| Anti-sweat structure | insulation layer and door micro-thermal anti-sweat |
| Expansion | Heat reach 300 degree, cold reach -100 degree |
Types of Humidity Systems:
There are various types of humidity systems used on test chambers today such as a water bath, boiler/steam
generator and atomizing system.
Water Pan - Very stable, but slow response
Boiler - Standard on most CSZ chambers. The advantages of this system are that it can attain 98%
humidity and has large capacity to work in any size unit. The disadvantages of this system is that live
load from boiler can cause problems at lower temperatures when the DUT generates heat.
Atomizer - This system sprays very fine drops of water into the air stream. The advantages of this system
are that it provides good control with live loads. CSZ typically uses this type of humidity systems for
devices under test that are over 500 watts, with the exception of larger chambers.
Hot and cold impact testing machines used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time, Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics.... and other materials, it can be used as a basis for improvement of their products.
Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
5 Free technical training for visiting factories
6 24-hour Online contact
7 Free software upgrades
