Product Details:
|
| Shock Temperature Ragne: | -65°C~150°C | Temperature Fluctuation: | ±1.0℃ |
|---|---|---|---|
| Power: | 220V , 50Hz | Application: | Electrics |
| Controller: | Programmable LCD Touch Screen | Temperature Uniformity: | ±2.0℃ |
| Condenser: | Water-cooled Condensing Agent | Keyword: | Thermal Shock Chamber |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

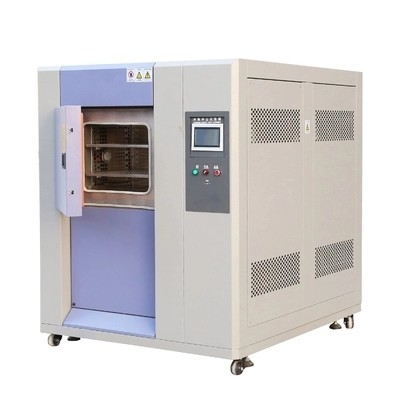

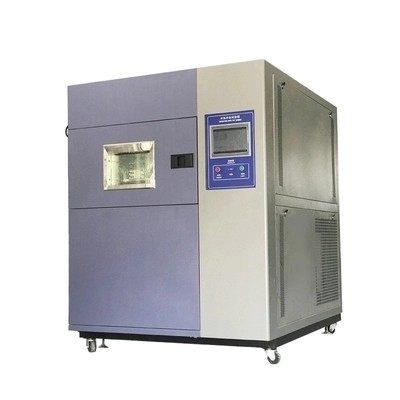

0.2-0.5Mpa Thermal Shock Test Equipment Explosion Proof Lab Humidity Chamber
Safety devices:
Leakage and breaker, over temperature, low temperature protect device, exhaust valves, sample power control terminal, over temperature protection of high and low chamber, compressor over pressure, over heat protection, out of water relay, heat relay of fan, compressed air pressure switch, fuse, external alarm terminal
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30℃
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
Features:
1. Perfect appearance and easy to operate.
2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
Main parameters:
| Inner dimension (W*D*H) | 500*450*450mm |
| External dimension (W*D*H) | 1380*1370*1980mm |
| Temperature range | -40 ~ +80℃ |
| High temperature chamber pre-heating range | 60 ~ 100℃ |
| Heating speed | +60→+100℃ about 10 minutes |
| Low temperature chamber pre-cooling range | -65 ~ 0 |
| Cooling speed | Ambient →-65℃ about 65 minutes |
| Temperature deviation | ±3℃ |
| Thermal recovery time | Within 5 minutes |
| External material | Antirust processing cold-rolled steel sheet |
| Internal material | SUS#304 stainless steel |
| Thermal insulation material | Polyurethane foam and fiberglass |
| Coolant | R404A / R23 |
| Cooling method | Air cooling |
| Pressure | 0.2 - 0.5Mpa |
| Power supply | Three phase, 380V, 50Hz |
Ways of service:
Solve the problems in using the test chambers timely and Effectively
Response within 6 hours once got questions from customers.
Engineers available to service machines overseas to install and commissioning
Training how to install, operate and maintain the machine
On-site diagnosis and repair / Online diagnosis and repair
Business Negotiations
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
