Product Details:
|
| Cable: | 1 Cable Hole / Power Supply | Humidity Range: | 20%~98%R.H.(10%~98%R.H/ 5%~98%R.H) |
|---|---|---|---|
| Cooling Rate: | 0.7c~1.0c/Min (Average) | Brand: | GSKA |
| Keyword: | Thermal Cycle Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Chamber Materials: | SUS#304 Stainless Steel For Internal Chamber | Test Time: | 1~9999 Minutes(arbitrary Setting) |
| High Light: | Temperature Test Chamber,Climate Test Chamber |
||

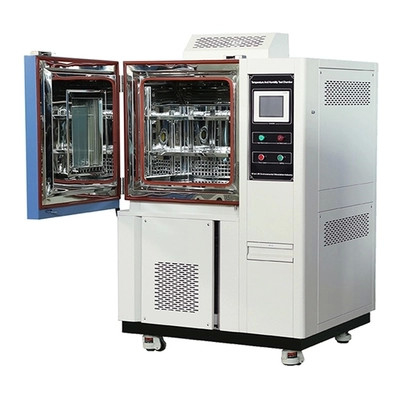

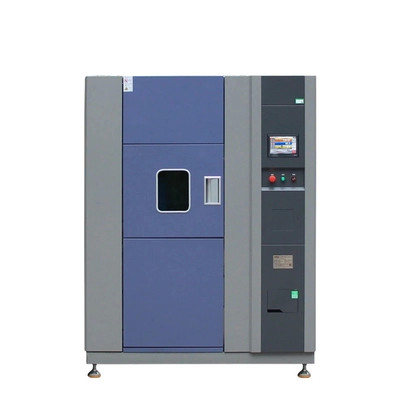

High Low Temperature Thermal Cycle Test Chamber 0.2-0.4MPa Dustproof
Applications:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Features:
1. Highly accurate temperature recovery
2. 1000 cycles continuous operation (option: defrost-free operation)
3. Accurate and dependable test result (option: product temperature control*)
4. Monitoring product temperature (option: product temperature monitor with trigger function)
5. patent parallel refrigeration system improves reliability
6. Automatic setting of pre-cooling and pre-heating in energy saving, Eco operation mode
Additional functions:
Timer, over temperature and power failure protection, alarm, record test curve, emergency stop, display test time
Circulated cooling water: pressure: 0.2~0.4MPa, temperature: ≤30℃
Standard configuration: indication lamp of test chamber, time meter, test hole for wire routing, 6pcs castor, 4pcs adjust wheel.
Specification:
| Model | GSKA-80L (A~F) |
GSKA-150L (A~F) |
GSKA-225L (A~F) |
GSKA-408L (A~F) |
GSKA-800L (A~F) |
GSKA-1000L (A~F) |
| Inner size: WHD(cm) | 40*50*40 | 50*60*50 | 60*75*50 | 60*85*80 | 100*100*80 | 100*100*100 |
| External size: WHD(cm) | 105*165*98 | 105*175*108 | 115*190*108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temperature range | (Low temp.:A:+25℃; B:0℃;C:-20℃; D:-40℃; E:-60℃; F:-70℃) (High temp.: + 150℃) | |||||
| Humidity range | 20%~98% R.H | |||||
| Temp analytic accuracy/ uniformity |
0.1℃/±2.0℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Humidity control accuracy | ±0.1%;±2.5% | |||||
| Heat, cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system |
Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
|||||
| Protection devices |
Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
|||||
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4, Foot Cupx4 | |||||
| Compressor | Original France“Tecumseh”brand | |||||
| Controller | Taiwan, Independent R&D software | |||||
| Power | AC220V 50/60Hz & 1 , AC380V 50/60Hz 3 | |||||
| Weight (kg) | 170 | 220 | 270 | 320 | 450 | 580 |
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
EIA - 364-31C temp resistance GB/T2423.3 constant heat test method
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
Ø ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
