Product Details:
|
Brand Name: | GSKA | Sample Rotary Diameter: | ø189 ~ ø249 Mm |
---|---|---|---|
Water Pump Power: | 0.08KW | Power: | Electronic |
Place Of Origin: | Dongguan China | Sample Frame Speed: | 3.7 CP.m |
Sample Specifications: | 75mm×150mm×(0.6)mm | Material: | Stainless Steel |
High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
Minitype Xenon Lamp Weather Resistance Test Chamber Total Power: 2.25KW
Basic Principles:
Weather resistance test is an important means of screening formula and optimizing product composition in the process of scientific research and production. It is also an important content of product quality inspection. Weather resistance test is required for application materials such as coatings, plastics, aluminum plastic panels, and automobile safety glass.
The main factors that cause material aging are sunlight and moisture. The weatherproof chamber can simulate the damage caused by sunlight, rain and dew. Weather resistance test box using xenon lamp to simulate the effect of sunlight, using condensation moisture to simulate rain and dew, the measured material placed in a certain temperature of light and moisture alternating cycle program for testing, with a few days or weeks can reproduce the outdoor months and even years of harm. Data from artificial accelerated aging tests can help select new materials, modify existing materials, and evaluate how changes in formulation affect product durability.
UV weather stability test chamber is the most widely used UV Weathering tester in the world,there are thousands of ultraviolet aging testers coming into use. It has become the standard of the UV test, fit standards of ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation need to be engenderd in months or years but can engender in a few days or weeks.
Features:
After directly exposed to the sun in the shipping container, some materials, like rubber & shoes, may fade, discolor, and age. And UV aging test machine can simulate the circumstances of sunshine radiation in containers to test the resistance to discoloration of materials.
1.The UV weather stability test chamberis designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. UV weather stability test chamber is unique condensating system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to mainten.
6.The water level controller is outside the box, easy to monitor.
7. UV weather stability test chamber has truckles, convenient to move.
8.Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9. UV weather stability test chamberhas irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10. UV weather stability test chamber has Chinese and English instruction book, convenient to consult.
11. UV weather stability test chamber Divided into three types: common, light irradiance controlling, spraying.
Specification:
Model | GSKA-11 |
Control system | The man-machine interface, color LCD touch screen |
Machine size | 500×1300×1460(D×W×H)mm |
Temperature range | RT+10℃~+70℃ |
Temp fluctuation | ±1℃ |
Temp uniformity | ±3℃ |
Humidity range | ≥95% R·H |
Distance between lamps | 70mm |
Distance between samples and lamps | 50±2 mm |
Lamp life | 1600~1800h(Imported lamps) |

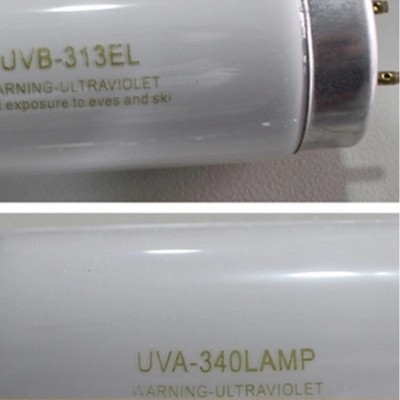

Light source | UVA-340 or UVB-313 8 pcs(40W/each lamp) |
Wavelength of UV light range | UV-B Wave (280~315nm) or UV-A Wave (320~400nm) |
Power | AC 220V 50HZ 5KW |
Size of standard specimen | 75×150×10mm WHD (customized available) |
Net Weight | 150KG |
|
● SAE J2020 ● PREN 1062-4 ● ISO4892-3 ● ASTM G53 ● EN534 ● ISO11507 ● ASTM D4587 ● ISO 11507 ● ASTM D4329 ● ASTM D5208 ● ISO4892-3 ●ASTM D4587 |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Package: Standard export wooden case, plywood case or according to customer's requirement.
If you need more info about this UV Weather Simulated Plastic Accelerated Aging Test Machine / Plastic Aging Chamber , please contact with us,thank you
