Product Details:
|
| Brand Name: | GSKA | Test Time Setting Range: | 0.01s~99.99s/ 0.1s ~999.9h |
|---|---|---|---|
| Water Pump Power: | 0.08KW | Power: | Electronic |
| Total Power: | 2.25KW | Sample Frame Speed: | 3.7 CP.m |
| Sample Specifications: | 75mm×150mm×(0.6)mm | Material: | Stainless Steel |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

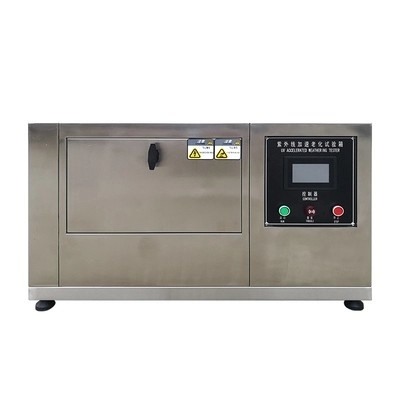

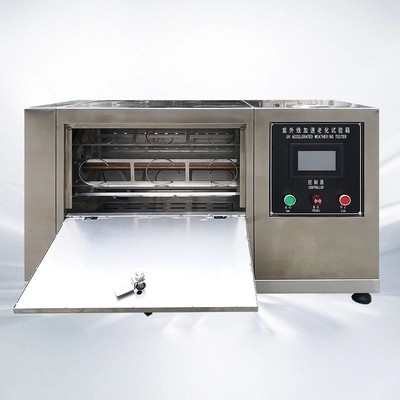

Small Desktop Display Uv Test Chamber Stainless Steel Material
Product overview:
suitable for coating and other non-metallic materials with water exposure aging experiment. Because the ultraviolet light in the sunlight is the main factor causing the oxidation degradation of the polymer, and the moisture is an important damaging factor to accelerate the aging, the device has the characteristics of quick and simple simulation of outdoor exposure aging, and has practical value for testing the relative weather resistance of different specimens.
UV weather stability test chamber is the most widely used UV Weathering tester in the world,there are thousands of ultraviolet aging testers coming into use. It has become the standard of the UV test, fit standards of ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation need to be engenderd in months or years but can engender in a few days or weeks.
Features:
After directly exposed to the sun in the shipping container, some materials, like rubber & shoes, may fade, discolor, and age. And UV aging test machine can simulate the circumstances of sunshine radiation in containers to test the resistance to discoloration of materials.
1. The UV weather stability test chamberis designed according to uses’ operation , it’s easy to operate, safe and reliable.
2. The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3. The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. UV weather stability test chamber is unique condensating system can be contented by tap water.
5. The heater is under the container rather than in the water, which is long life, easy to mainten.
6. The water level controller is outside the box, easy to monitor.
7. UV weather stability test chamber has truckles, convenient to move.
8. Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9. UV weather stability test chamberhas irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10. UV weather stability test chamber has Chinese and English instruction book, convenient to consult.
11. UV weather stability test chamber Divided into three types: common, light irradiance controlling, spraying.
Specification:
| Product Name | UV Weathering Test Chamber | |
| Internal dimensions (mm) | 450*1170*500 | 450*1170*500 |
| Overall dimensions (mm) | 680*1300*1500 | 680*1300*1500 |
| Capacity of test specimens | 48 pieces Individual specimen size is 75mm * 150mm | 48 pieces Individual specimen size is 75mm *150mm |
| Controller | Programmable color display touch screen controller | Programmable color display touch screen controller |
| Temperature range | Ambient~90℃ ±2℃ | Ambient~90℃ ±2℃ |
| Humidity range | ≥95%R.H ±2%R.H |
≥95%R.H ±2%R.H
|
| Black Panel Temperature | BPT 30~80℃ | BPT 30~80℃ |
| Irradiation Source | Fluorescent UV lamps (8) - 40 W | Fluorescent UV lamps (8) - 40 W |
| UV wavelength | 290 ~ 400nm | 290 ~ 400nm |
| Irradiance Control | N/A | 0.3 ~ 20 W/㎡(340 nm / 313 nm) |
| Water Spray | Spraying water | Spraying water |
| Distance of Specimen and lamp | 50mm | 50mm |
| Nominal power | 5000W | 5500W |
| Power Supply | 380V 50HZ | 380V 50HZ |
Package: Standard export wooden case, plywood case or according to customer's requirement.
If you need more info about this UV Weather Simulated Plastic Accelerated Aging Test Machine / Plastic Aging Chamber , please contact with us,thank you
