Product Details:
|
| Effective Irradiation Area: | 1020 *290mm | Humidityrange: | More Than 90%R.H. |
|---|---|---|---|
| Humidity Range: | ≥75%RH | Power: | Electronic |
| UV Wavelength: | 315-400nm | Wave Length Of Test Light Source: | 280~400nm |
| Air Pressure: | 86~ 106Kpa | Material: | Stainless Steel |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

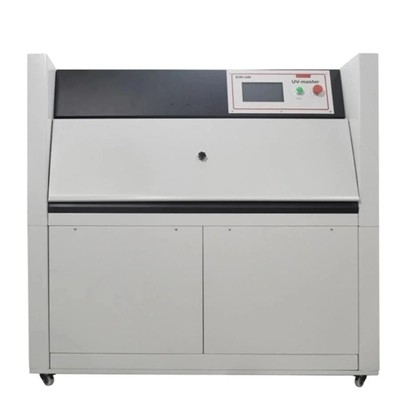

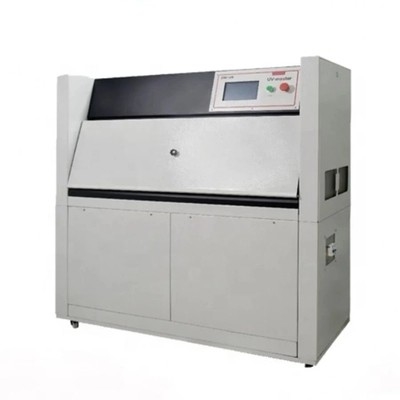

Programmable Controller Accelerated Uv Testing Equipment RT+10℃~70℃
Application :
Weather accelerated uv aging test chamber is designed and manufactured for simulate heat and ultraviolet radiation of the sun, rain and dew, to inspect and predict the aging resistance of the product according to the testing result, and is helpful to optimize the products .the testing type damage include: bleaching, discoloration, gloss loss, powder, crack, turbidity, bubble-based, strength decline and oxidation.
It's widely used in the industry, such as coating, printing ink, paint, resin, plastics, print, packing, motor van, cosmetic, metal, electron, galvanization, medical, and so on.
UV Ageing Weathering Chamber Test Conditions:
1. test sample fixed to the test rack fixture. When the sample holder is not filled with the sample faced with fluorescent light , you need to use the blackboard to fill the sample holder, keep the chamber inner wall closed.
2 test temperature. Illumination can be 50,60,70 ℃ three temperatures, priority recommended 60 ℃; condensed phase temperature Degree is 50 ℃, the temperature uniformity tolerance of ± 3 ℃.
3. Each condensation cycle selectable illumination light 4H, 4H condensation or 8H light, 4H condensing: two kinds of cycles.
4 After the first light 400 ~ 450H, every row need to be replaced with a fluorescent lamp. Other lamps in accordance with the light cycle and replace way to replace the lamp to compensate for losses caused by lamp aging. This mode of operation is to ensure that each lamp life is between 1600 ~ 1800H.
5 When replacing the lamp, a water dish should be dry and clean, avoid the formation of scale.
Specifications :
| Rubber Programmable Accelerated Weathering UV Aging Test Chamber Technical Parameters | ||
| Model | GSKA-UV-280 | |
| Internal Dimension W*H*D (cm) |
115*50*40 | |
| External Dimension W*H*D (cm) |
150*150*55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10degree C~+70degree C | |
| Temperature Fluctuation | ±0.5degree C | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use |
+5degree C~+35degree C | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) |
280~400 | |
| Center Distance between Sample and Tube (mm) |
50±2 | |
| Center Distance Between Tubes (mm) |
75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1phase 3 lines, 50HZ | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Package: Standard export wooden case, plywood case or according to customer's requirement.
If you need more info about this UV Weather Simulated Plastic Accelerated Aging Test Machine / Plastic Aging Chamber , please contact with us,thank you
