Product Details:
|
| Brand Name: | GSKA | Humidityrange: | More Than 90%R.H. |
|---|---|---|---|
| Humidity Range: | ≥75%RH | Power: | Electronic |
| Product Name: | UV Accelerated Aging Test Machine | Wave Length Of Test Light Source: | 280~400nm |
| Air Pressure: | 86~ 106Kpa | Material: | Stainless Steel |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

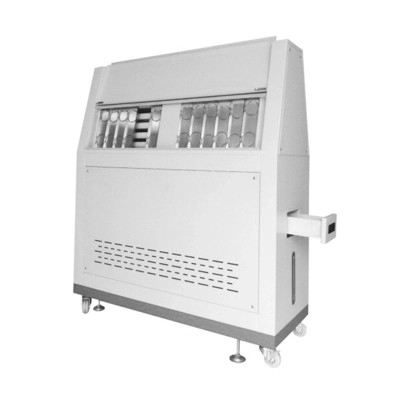

Programmable Controller Solar Radiation Test Chamber AC220V 50HZ
Equipment summary:
QUV UV aging testing machine can simulate the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Corresponding standard:
Accord with ASTMG53-77, GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS, SAE, ASTM D4355, ISO-4892, ASTM-G53, D4587, 4799, BS-27282, SAE-J2020
Applicable industries:
It is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc.
Features:
After directly exposed to the sun in the shipping container, some materials, like rubber & shoes, may fade, discolor, and age. And UV aging test machine can simulate the circumstances of sunshine radiation in containers to test the resistance to discoloration of materials.
Specifications :
| Rubber Programmable Accelerated Weathering UV Aging Test Chamber Technical Parameters | ||
| Model | GSKA-UV-280 | |
| Internal Dimension W*H*D (cm) |
115*50*40 | |
| External Dimension W*H*D (cm) |
150*150*55 | |
| Applicable Standard | GB/T16422,GB/T5170.9 | |
| Temperature Range | R.T.+10degree C~+70degree C | |
| Temperature Fluctuation | ±0.5degree C | |
| Humidity Range | ≥95%R.H. | |
| Environmental Temperature for Use |
+5degree C~+35degree C | |
| Test Light Source | UVA,UVB UV light | |
| Wave Length of Test light Source (nm) |
280~400 | |
| Center Distance between Sample and Tube (mm) |
50±2 | |
| Center Distance Between Tubes (mm) |
75±2 | |
| Material of Internal Case | Stainless steel with sanding polish | |
| Material of External Case | Stainless steel with sanding polish or painting coated | |
| Heating and Humidifier | Electric-heat type steam generator ,heating and humidification | |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type | |
| Input | Black panel thermometer.PT-100 Sensor | |
| Standard Configuration | 1 pc Stainless steel shelves | |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection | |
| Power | AC220V 1phase 3 lines, 50HZ | |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Package: Standard export wooden case, plywood case or according to customer's requirement.
If you need more info about this UV Weather Simulated Plastic Accelerated Aging Test Machine / Plastic Aging Chamber , please contact with us,thank you
