Product Details:
|
| Power: | Electronic | Material: | Stainless Steel |
|---|---|---|---|
| Humidity Range: | ≥75%RH | Brand: | GSKA |
| Temperature Range: | RT+10°C~70°C | Lamp Power: | 40W/Unit, 8PCS For Unit Chamber |
| Air Pressure: | 86~ 106Kpa | Authentication Certificate: | CE |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

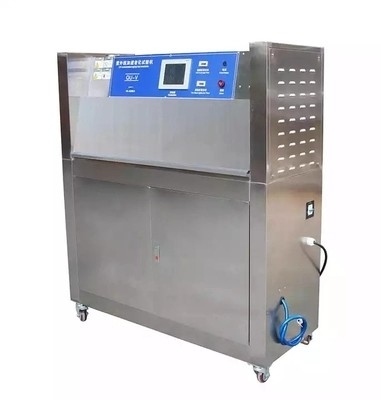

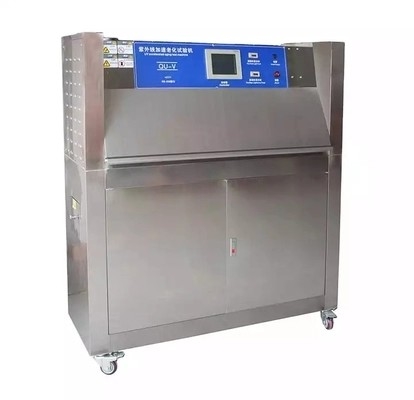

Programmable Climate Test Chamber , CE UV Environment Test Chamber
Description:
The UV light aging resistance test chamber simulate and recreate damage force of sunlight, rain and
dew on specimen, test its an-aging and climatic resistance capability of the products.
Method: the test chamber will let the specimen expose to controlled solar light and moisture
circumstance, raise temperature at the same time.
UV-light fluorescent lamp will be applied to simulate sunlight, and moisture condition will be realized
by condensation and spraying.
It is particularly designed for to test aging resistance of rubber, and also suitable in flight, automobile,
home appliance, and technology and research and so on...
Features:
(1). Test UV anti-aging of rubber, tire by simulating sunlight.
(2). Test climatic resistance of products by simulating interactive environment of sunlight and moisture.
(3). Widely used in many industry such as rubber, printing ink and oil paint; resin and plastics,
packaging; adhesive agent; automobile and motorbike; cosmetic; mental; leather....
(4). Able to be custom made according to customer’s specific requirement.
Specifications of Aging UV Test Chamber:
| Studio Size | 400W×1140D×390Hmm |
| Outside dimension | 500W×1300D×1360Hmm |
| Materials | Inside and Outside SUS#304 stainless steel |
| Temperature range | RT+10~70°C |
| Temperature uniformity | ±2°C |
| Temperature fluctuation | ±0.5°C |
| Temperature control | PID SSR control |
| Humidity range: | ≥90%RH |
| Controller | Korean TEMI 880 programmable controller |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Illumination, condensation and water spray test cycle is programmable |
| Lamp power | 40W/Piece |
| Distance from sample to lamp | 50±2mm (adjustable) |
| Centre distance between the lamp | 70mm |
| Irradiance | 1.0W/cm2 |
| Wavelength ultraviolet light | UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) |
| Effective irradiation areas | 640×1140mm |
| Irradiation black panel temperature | 50°C~70°C |
| Standard Specimen Size | 75×150mm or 75×3000mm (special specitications to be described in the contact) |
| Required water depth for water channel | 25mm, automatically control |
| Testing time | 0~999H, adjustable |
| Power | 220V/50Hz /±10% 5KW |
| Protection system | Overload short circuit protection, over temperature protection, water lackin |
Features:
1. UV aging test machine can do two kinds of testing: aging and anti-yellowing.
2. Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
3. Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.
Application:
This machine is mainly used for the UV aging resistance of light materials such as leather, plastic, rubber and cloth under UV radiation.
The machine simulates the ability of the test material to withstand ultraviolet ray under a certain period of time under simulated ultraviolet light radiation, and accelerates the aging test chamber to simulate the environment of the transport container that is exposed to sunlight, in order to test the degree of resistance of the product in it. For the preparation of product materials, the reference of chemical raw materials.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
