Product Details:
|
Lamp Rated Life: | 1000h | Material: | Stainless Steel |
---|---|---|---|
Humidity Range: | ≥75%RH | Brand: | GSKA |
Keyword: | UV Weathering Test Chamber | Lamp Power: | 40W/Unit, 8PCS For Unit Chamber |
Air Pressure: | 86~ 106Kpa | Power: | Electronic |
High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |

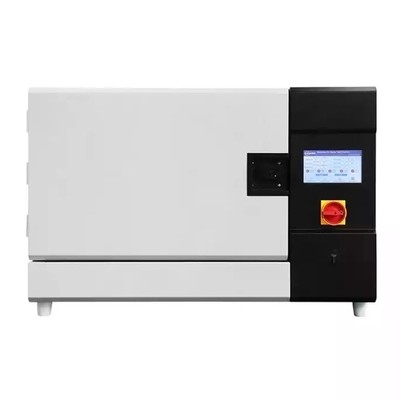

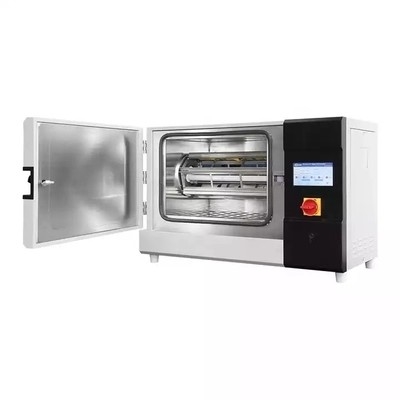

Bench Type Solar Simulation Chamber Used For Automobile Parts UV Aging Test
Characteristics:
1. The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2. The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3. The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. It’s unique condensating system can be contented by tap water.
5. The heater is under the container rather than in the water, which is long life, easy to mainten.
6. The water level controller is outside the box, easy to monitor.
7. The machine has truckles, convenient to move.
8. Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9. It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10. It has Chinese and English instruction book, convenient to consult.
11. Divided into three types: common, light irradiance controlling, spraying
Specifications of Aging UV Test Chamber:
Studio Size | 400W×1140D×390Hmm |
Outside dimension | 500W×1300D×1360Hmm |
Materials | Inside and Outside SUS#304 stainless steel |
Temperature range | RT+10~70°C |
Temperature uniformity | ±2°C |
Temperature fluctuation | ±0.5°C |
Temperature control | PID SSR control |
Humidity range: | ≥90%RH |
Controller | Korean TEMI 880 programmable controller |
Control mode | Balance temperature humidity control (BTHC) |
Test cycle setting | Illumination, condensation and water spray test cycle is programmable |
Lamp power | 40W/Piece |
Distance from sample to lamp | 50±2mm (adjustable) |
Centre distance between the lamp | 70mm |
Irradiance | 1.0W/cm2 |
Wavelength ultraviolet light | UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) |
Effective irradiation areas | 640×1140mm |
Irradiation black panel temperature | 50°C~70°C |
Standard Specimen Size | 75×150mm or 75×3000mm (special specitications to be described in the contact) |
Required water depth for water channel | 25mm, automatically control |
Testing time | 0~999H, adjustable |
Power | 220V/50Hz /±10% 5KW |
Protection system | Overload short circuit protection, over temperature protection, water lackin |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
