Product Details:
|
| Warranty: | 1 Year | Chamber Material: | SUS#304 Stainless Steel |
|---|---|---|---|
| Temperature Uniformity: | 3℃ | Humidity Range: | ≥75%RH |
| Customized Support: | OEM, ODM | Temperature Range: | RT To 70℃ |
| Controller: | Programmable Controller, LCD Touch Screen | Temperature Fluctuation: | ≤±1.0℃ |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

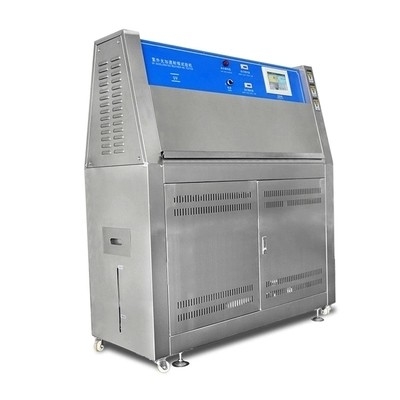

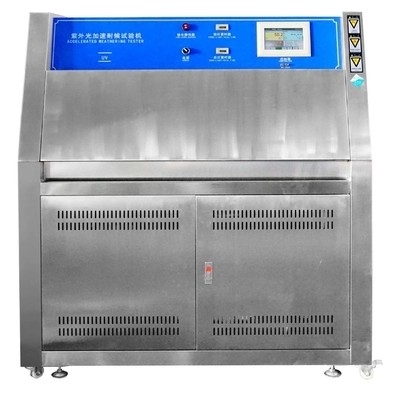

Programmable Controller Xenon Lamp Weather Resistance Test Chamber OEM
Function:
3. Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.
Feature :
Our UV aging test chamber series includes 4 different types of UV aging test boxes, QUV/se, QUV/basci, QUV/spray and QUV/cw. It can meet the testing standards of coatings, ink, adhesives, plastic products and other industries.
1. Different test methods and procedures: Automatic control, real-time monitoring and display.
2. The sample frame temperature: Sample temperature BPT directly display and automatic control.
3. Condensation control: Condensation directly display and automatic control.
4. Circular manner: Light, condensation and spray directly display and automatic control.
5. Light irradiance: Testing process can be set light irradiance energy and time and monitoring.
6. Spray water: Adjustable and display, automatic control, test process can be set spraying time
.
7. The calibration function: Automatic temperature calibration, convenient, fast.
8. Alarm function: Automatic alarm .
9. Water supply way: Automatic feed water.
10. PC connection method : RS232
| Item | Specification |
| Chamber dimension (W*D*H) | 1300*500*1460mm |
| Chamber material | SUS#304 stainless steel |
| Temperature range | RT to 70℃ |
| Temperature fluctuation | ≤±1.0℃ |
| Temperature uniformity | 3℃ |
| Humidity range: | ≥75%RH |
| Controller | Programmable controller, LCD touch screen |
| Control mode | Balance temperature humidity control (BTHC) |
| Test cycle setting | Exposure, condensation and water spray test cycle is programmable |
| Water spray cycle | Spray 18mins in every 120mins / spray 12mins in every 60mins |
| Water usage | 8L/day |
| Distance from sample to lamp | 55±2mm |
| Centre distance between lamps | 65~70mm |
| Irradiance range | 0.45~0.90W/m2 |
| UV lamps | Imported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime) |
| Lamp power | 40W/Piece |
| Specimen Size | 75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm |
| Testing time | 0~999H, adjustable |
| Protection system | Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
