Product Details:
|
Compressed Air: | 0.5~0.8MPa | Shock Pulze: | Sine |
---|---|---|---|
Type: | 3 Axis Vibration | Power: | Electronic |
Max Acceleration: | 30mm | Frequency Range: | 200 Hz |
Cooling: | Air Cooling | Keyword: | Vibration Testing Machine |
High Light: | Vibration Tester,Vibration Test Machine |

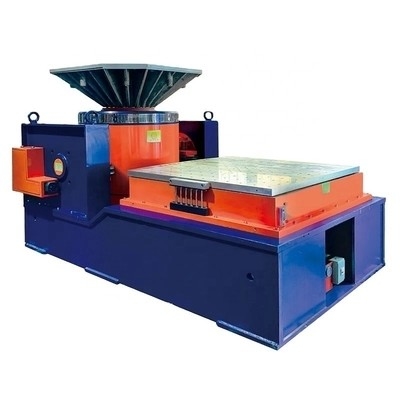

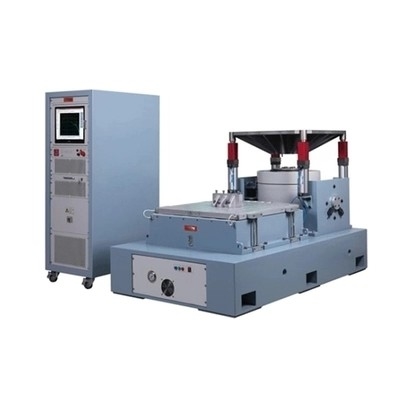

Load 120Kg Antirust Vibration Testing Machine Multifunctional
Application:
Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.
The main performance:
1, the use of hydraulic lift, high pressure hydraulic brake free fall impact machine to achieve vibration isolation system at different impact pulse width impact characteristics of the test,
3, with impact measuring instrument, single-channel data acquisition, you can simultaneously two channels of acceleration data measurement, storage, report printing, data callback, database management and other functions.
4, can produce a wide range of half-sine pulse of any time.
5, can do the equivalent package drop test
Parameter:
Vibration Testing Machine | ||
Sine thrust | 600kgf | |
Random thrust | 600kgf | |
Impact thrust |
1200kgf
|
|
Frequency Range | 5~2000Hz | |
Continued displacement | 51mm | |
The impact of displacement | 51mm | |
Maximum speed | 2m/s | |
Maximum acceleration | 981m/s2 | |
Moving coil diameter | Φ150mm | |
Allow eccentric moment | >190N.m | |
Load connection point | 6 piont | |
Equivalent mass of moving parts | 6kg | |
Countertops screw size (standard) | M8 | |
Screw layout table (diameter, circumference) | 8 on Φ100mm,8 on Φ,200mm. | |
Axial isolation frequency | <3Hz | |
Maximum load | 120Kg (customer request 45Kg) | |
Magnetic flux leakage | <1mT | |
Dimensions (without packaging)(L×W×H) | 1600mm×985mm×850mm | |
Vibration table Weight | 1850kg | |
Amplifier output | 8kVA | |
SNR | >65dB | |
System Protection | The entire power amplifier has: Grid overvoltage, undervoltage power grid phase, logical failure, power module protection, power module temperature, output overcurrent, output overvoltage, power supply, displacement units, units body temperature, external linkage, etc. protection circuit, when any fault occurs, turn off the output, sound and light alarm. In addition to the above protection, it also has a protective function RMS values of tolerance protection, emergency stop devices, such as improving running. | |
Rated output voltage | 120Vrms | |
Amplifier efficiency | >95% | |
Fan | ||
Power | 0.75kW | |
Airflow | 0.3m3/s | |
Duct diameter | 120mm | |
Pressure | 0.048kgf/cm2 | |
Vertical extension table | ||
Table size | 600mm×600mm | |
Equivalent mass | 23kg | |
Upper frequency | 2000Hz | |
Countertop Materials | Aluminium | |
Horizontal slide | ||
Table size | 600mm×600mm | |
Thickness | 30mm | |
Countertops weight | 36kg | |
Frequency | 2000Hz | |
Bearing number | 1 | |
Bearing weight | 0.58kg | |
Connector Weight | 1.4kg | |
Maximum Load | 300kg | |
Countertop Materials | Aluminium |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
