Product Details:
|
| Certification: | CE SGS ROHS UL CE | Temperature Uniformity: | ≤2.0℃ |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Testing Room Capacity: | 60,120,270,480L / Customized |
| Power Supply: | AC220V 1Phase 15A | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Brand: | GSKA |
| High Light: | Salt Spray Test Chamber,Salt Spray Corrosion Tester |
||

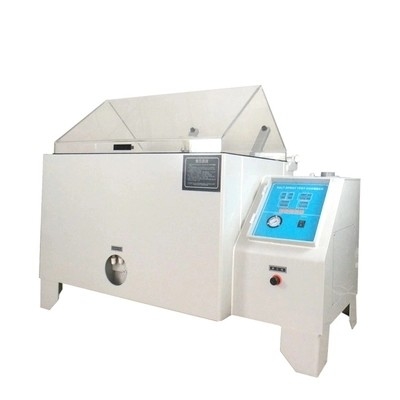

OEM Precision Glass Nozzle Neutral Salt Spray Test Chamber Can Store 600 Days Data
Operation method:

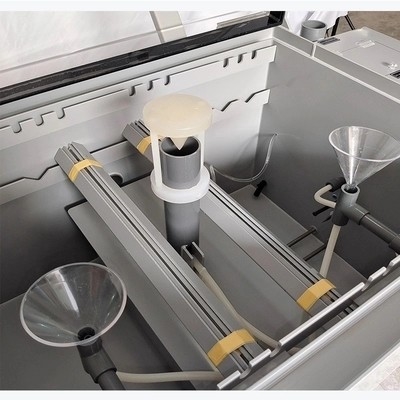

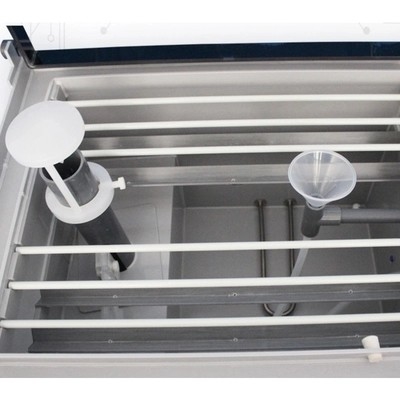

1. Install the inner parts of the salt spray test chamber: tower spray device, funnel, round rod, V-shaped sample stand, etc.
2. Connect the air source and turn on the power switch after the power supply is connected.
3. Add water to the pressure bucket and the box, stop adding water after the two low water level lights are off, and add water to the sealing groove to seal.
4, the pure water and sodium chloride salt in a ratio of 1:20. Pour the prepared solution into the test entrance (turn off the light of low saline).
5. After all the lights are off, we can turn on the operation, spray and timing switches. After the test, the defogging switch can be turned on.
6. According to the test requirements, the equipment can spray continuously and periodically (T1 and T2 tables are all set as 0 for continuous spray, T1 is set as working time and T2 is rest time for intermittent spray).
The equipment material:
The salt spray corrosion test box is generally made of PVC and PP.
As a neutral salt spray test (NSS test), salt spray test (SS test) when using PVC reinforced hard plastic plate.
PP board was used for acetate spray test (ASS test) and copper accelerated vinegar instinct test (CASS test).
PP board is more resistant to high temperature and strong corrosion than PVC board.
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Applications:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
