Product Details:
|
| Package Material: | Wooden Case | Power: | Electronic, AC220V |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Testing Room Capacity: | 60,120,270,480L / Customized |
| Customized Support: | OEM, ODM, OBM | Controller: | Programmable LCD Touch Screen Casters |
| Inside Box Size(cm): | 60x45x40,90x60x50,120x80x50 | Air Pressure: | 1.00±0.01kgf/cm2 |
| High Light: | Salt Spray Test Chamber,Salt Spray Corrosion Tester |
||

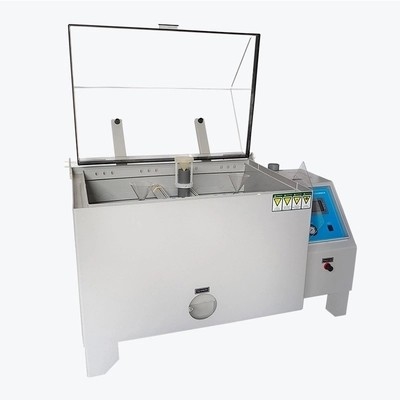

Singleton Salt Spray Chamber , Touch Panel Programmable Salt Spray Test Chamber
Compound salt spray test chamber:
It breaks through the concept of the traditional salt spray test chamber, combined with the function of alternating salt spray test, and has experimental environments such as hot air drying, damp heat, and salt spray.
product description:
Air supply system:
The air pressure is 1kg/cm2, which can be adjusted in two stages. The first is the imported pressure regulating filter with the function of filtering water.
Adjust to 2-2.5kg/ cm2 roughly, the second is the imported precision pressure regulating valve, adjust to the pressure gauge 1kg/ cm2.

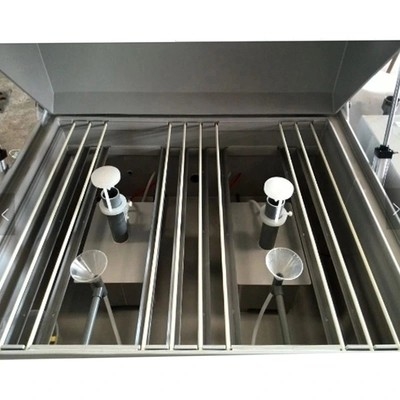

Spray method:
1. Apply bernouldt principle to take and absorb salt water and atomize it, the atomization degree is even, without blocking crystallization, to ensure the standard of continuous test.
2. Nozzle: made of special glass nozzle, the size and Angle of spray can be adjusted.

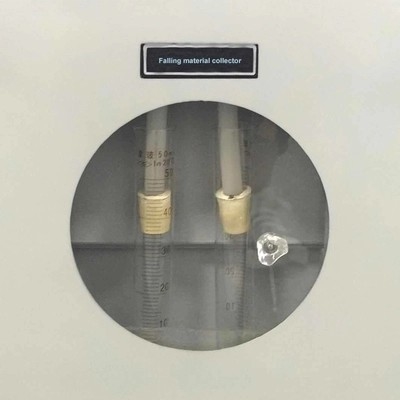

3. Spray volume: adjustable 1.5± 0.5ml 80cm2/Hr (16-hour average volume).
4. large brine storage tank, 48HR continuous spray.
Heating system:
External hot air heating method is adopted to reduce standby time and component damage rate.
S.S.R control heating power, accurate temperature, low power consumption.(titanium alloy corrosion prevention tube for electric heat pipe)
Circuit control system:
1. The main controller adopts 7-inch LCD human-machine interface, and the main screen can plan the test program.
2. The fixed time can be set 0-999 H 59 MIN.
3. The program mode can set salt spray and moisture test at the same time
4. With power off memory device, the remaining program can be continued when power back.
5. The rise and drop of temperature can be used for speed control and self-calibration of temperature and humidity reference points.
6. Temperature and humidity sensor the DIN PT - 100 Ω (platinum).
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
