Product Details:
|
| Brine Temperature: | 35℃+-1℃; 50℃+-1℃ | Controller: | Programmable LCD Touch Screen Casters |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Testing Room Capacity: | 60,120,270,480L / Customized |
| Keyword: | Salt Spray Test Chamber | Power Supply: | AC220V 1Phase 15A |
| Air Pressure: | 86~ 106Kpa | Brand: | GSKA |
| High Light: | Salt Spray Test Chamber,Salt Spray Corrosion Tester |
||

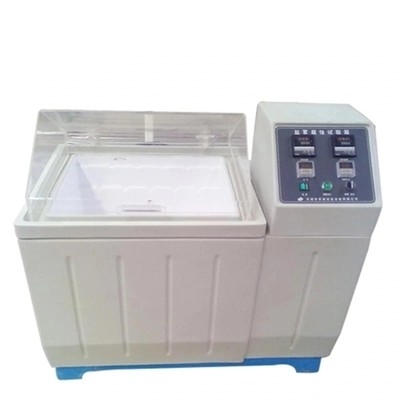

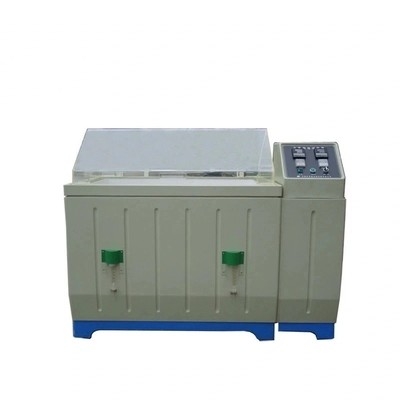

Programmable LCD Touch Screen Salt Spray Chamber Laboratory AC 220V 1Phase 15A
Uses:
This product is used to provide large parts industry,semi-finished products of the large temperature and humidity test environment equipment.
Character:
Content product can be any enlargement,reduction,designed with the needs of the user environment.
Modualar library board,easy accessibility,simple structure with a zero coefficient of ozone green(HFC)refrigerants R404,R23.Spacious,bright and large windows proof room with high brightness,so that users can observe the walk-in constant temperature and humidity conditions indoors laboratory testers.A full range of security devices and power memory to ensure the safety of users using the machine itself and blow ceiling type,reduce testing indoor sample of wind speed on the sample able to do low-speed high uniformity requirements.It can be connected to the computer,the recorder.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Features:
1.Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.
2.Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.
3.Inlet temperature controller using a digital display, PID control, error of ± 0.1 ° C.
4.Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.
5.Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Characters:
1. Use special machine structure which can meet temperature and humidity well distribution.
2. Use environment-friendly refrigerant which meets international standard.
3. LCD display screen uses dialog box operating easy and user-friendly.
4. When fault occurs, display failure causes to help troubleshooting.
5. Have safety protection equipment and power failure memory.
6. Connect with computer, recorder(under user needs)
