Product Details:
|
| Usage: | UV Accelerated Weathering Test Chamber | Material: | Stainless Steel |
|---|---|---|---|
| Humidity Range: | ≥75%RH | Brand: | GSKA |
| Keyword: | UV Weathering Test Chamber | Lamp Power: | 40W/Unit, 8PCS For Unit Chamber |
| Air Pressure: | 86~ 106Kpa | Power: | Electronic |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

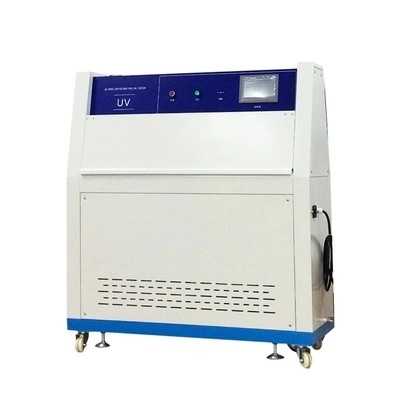

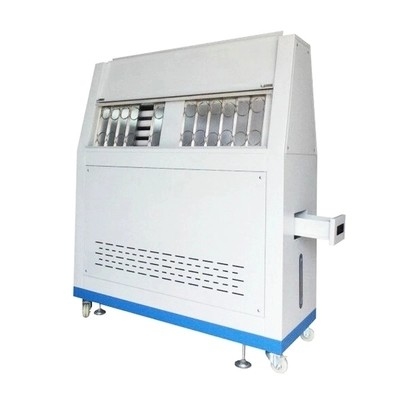

OEM Accelerated UV Weathering Test Chamber Stainless Steel 50Hz
Description:
UV weathering test chamber is to simulate the sun lighting, and it’ s specialized in the simulation of products in outdoors for a long time. The ultraviolet radiation in the sun is destructive on its exposure, only a few days or weeks, the equipment can reproduce the destruction outdoors for months or years. And then to see whether the product has fading, discoloration, brightness decline, powder, cracking, blurred, brittle, decreased strength and oxidation phenomena, while it can reproduce the destruction of rain and dew.
Product description:
Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Chamber Structure:
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Specifications of Aging UV Test Chamber:
| Studio Size | 24 sets of sample fixtures, 48pcs of samples in total | W1150 X H400 x D400mm |
| Outside dimension | W1300×H550×D1480mm | W1400 X H1450 x D650mm |
| Temperature range | RT+10~70°C | |
| Temperature uniformity | ±2°C | |
| Temperature fluctuation | ±0.5°C | |
| Testing time | 0~999H, adjustable | |
| Materials | Inside and Outside SUS#304 stainless steel | |
| Humidity range | ≥90%RH | |
| Controller | Korean TEMI programmable controller | |
| Lamp power | 40W/Piece | |
| Test cycle setting | Illumination, condensation and water spray test cycle is programmable | |
| Irradiance | 1.0W/cm2 | |
| Wavelength ultraviolet light | UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) | |
| Distance from sample to lamp | 50±2mm (adjustable) | |
| Centre distance between the lamp | 70mm | |
| Standard Specimen Size | 75×150mm or 75×3000mm (special specitications to be described in the contact) | |
| Required water depth for water channel | 25mm, automatically control | |
| Protection system | Overload short circuit protection, over temperature protection, water lackin | |
| Power | 220V/50Hz /±10% 4.5KW | |
Features:
1. UV aging test machine can do two kinds of testing: aging and anti-yellowing.
2. Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
3. Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
