Product Details:
|
| Brine Temperature: | 35℃±1℃ 50℃±1℃ | PH: | 6.5~7.2 3.0~3.2 |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Testing Room Capacity: | 60,120,270,480L / Customized |
| Customized Support: | OEM, ODM, OBM | Controller: | Programmable LCD Touch Screen Casters |
| Inside Box Size(cm): | 60x45x40,90x60x50,120x80x50 | Air Pressure: | 1.00±0.01kgf/cm2 |
| High Light: | Salt Spray Test Chamber,Salt Spray Corrosion Tester |
||

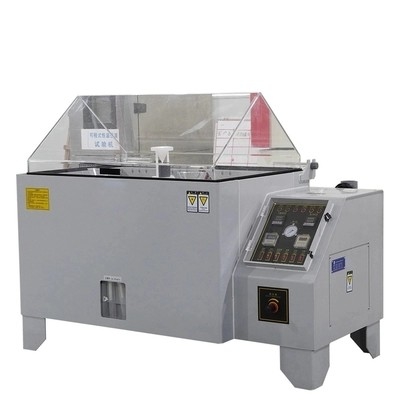

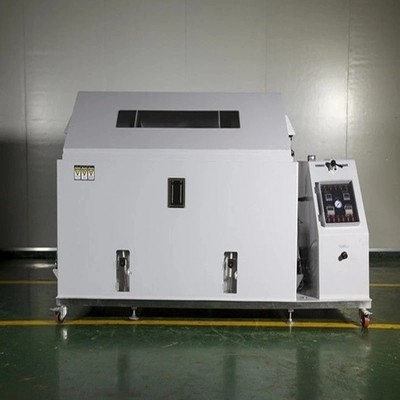

Intelligent PLC Salt Spray Test Chamber For Zinc Plating Atmosphere
Structural characteristics of:
The spray mode is tower spray, and the spray tower is placed in the middle of the bottom surface of the studio. The material of the nozzle is made of quartz glass, the spray is small, and the salt spray is naturally settled and evenly distributed. the control system of the equipment is placed in the upper right of the box, easy for users to operate, the panel is set with a power switch, exhaust switch, spray switch, two PID self-adjusting number display instrument, and equipment running time timer and clearance spray timer, the circuit board of the box is also special overtemperature protector.
The water seal form prevents the salt spray from spilling, and the jacket air duct is heated, so that the studio heats up quickly and the temperature distribution is uniform.The top cover of the salt spray box is designed with a top Angle of 110~112℃, so that the cold condensed water in the box does not directly drop on the test product.
Applications:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
