Product Details:
|
| Place Of Origin: | Dongguan China | Temperature Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Brand: | GSKA |
| Temperature Uniformity: | ≤2.0℃ | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Testing Room Capacity: | 60,120,270,480L / Customized |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

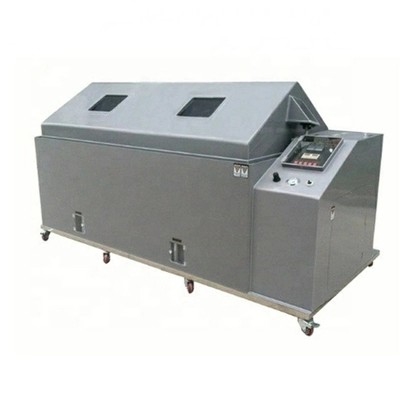

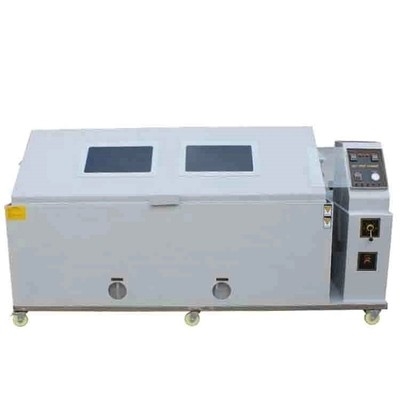

High Precision Salt Spray Tester PID Temperature Controller 480L
Enclosure structure:
The integral molding press is welded by high temperature, corrosion resistant, easy to clean, no leakage phenomenon.
Tower spray system, and equipped with salt filter system, no crystallization nozzle, salt spray distribution uniform, sedimentation free adjustment.
Box cover made of transparent material can clearly see the test items and spray condition inside the box.
Water seal structure is adopted between box cover and box, no salt spray overflow.
The line control panel and other components are fixed in a position convenient for inspection and maintenance. The door lock open side cover door is not only beautiful, but also convenient for maintenance.
The internal structure:
1. Spray device: tower sprayer with glass nozzle inside. Spray is guided by tower tube and dispersed by cone, and then diffused into the whole laboratory after uniform dispersion.
2. Adjustment of spray volume: increase the spray volume of the conical disperser on the spray tower, and decrease the spray volume;
3. Collector: the fine mist emitted by the nozzle will settle in a free-falling way. One or more funnel cups with a surface area of 80cm2 are built in to collect the salt mist, which will condense into water and flow from the catheter to the measuring cylinder outside the box.
4, heating water tank: water tank attached to the bottom of the laboratory, used for water heating to keep the temperature of the laboratory stable;
5, the shelf: made of plastic steel, a single bearing does not exceed 2kg, such as dispersed placement can bear the weight of 10kg, on both sides of the shelf are two rows of round holes, is to place the bar to vertical points 15 degrees, 30 degrees Angle.
Technical Parameters:
| Test Space W x H x D(mm) |
600x400x450 | 900x600x500 | 1200x1000x500 | 1600x1000x500 | 2000x1200x500 |
| External Dimension W x H x D(mm) |
1070x600x1180 | 1310x880x1280 | 1900x1300x1400 | 2300x1300x1400 | 2700x1500x1500 |
| Lab Volume | 108L | 270L | 600L | 800L | 1440L |
| Brine Tank Capacity | 15L | 25L | 40L | 40L | 40L |
| Power Supply | AC220V,15A | AC220V,15A | AC220V,20A | AC220V,20A | AC220V,30A |
| Test Equipment Temp. Range | RT~55℃ | ||||
| Pressure Tank Temp. Range |
RT~70℃ | ||||
| Temperature Fluctuations | ≤±0.5℃ | ||||
| Temperature Uniformity | ≤±2℃ | ||||
| Temperature Precision | ±1℃ | ||||
| Spray Pressure | 1.00±0.1kgf/c㎡ | ||||
| Lab Relative Humidity | Above 85%H.R | ||||
| Spray Way | Continuous or intermittent type spray(optional) | ||||
| Spray Quantity | 1.0~2.0ml/80c㎡/hour | ||||
| Safety Protection Device | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection. | ||||
Characters:
1. Use special machine structure which can meet temperature and humidity well distribution.
2. Use environment-friendly refrigerant which meets international standard.
3. LCD display screen uses dialog box operating easy and user-friendly.
4. When fault occurs, display failure causes to help troubleshooting.
5. Have safety protection equipment and power failure memory.
6. Connect with computer, recorder(under user needs)
Applications:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
