Product Details:
|
Temp Range: | RT+10°C ~70°C | Material: | Stainless Steel |
---|---|---|---|
Humidity Range: | ≥75%RH | Brand: | GSKA |
Keyword: | UV Weathering Test Chamber | Lamp Power: | 40W/Unit, 8PCS For Unit Chamber |
Air Pressure: | 86~ 106Kpa | Power: | Electronic |
High Light: | UV Testing Equipment,Accelerated UV Testing Equipment |

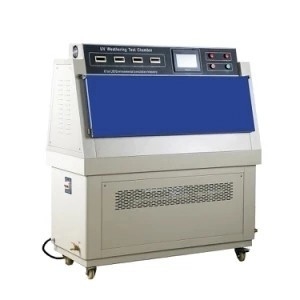

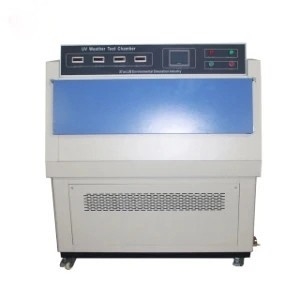

Programmable UV Weathering Test Chamber Anti Aging Waterproof
Designing Standard:
IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;prEN 1062-4,BS 2782;JIS D0205;SAE J2020,etc.
Temperature Control:
During UV exposure cycle, the photochemical reaction is not so sensitive to temperature. But the following all reactions speed are all determined UV Lamp Weathering Tester by the temperature. The reaction speed will be accelerated with the rise of temperature. So the control of temperature is very important. At the same time, we should make sure that the test chamber temperature is the same with the highest temperature that material exposed directly by sunshine.
In this equipment, UV exposure temperature and environment temperature can be set at any value within 50℃~80℃. The UV exposure temperature is controlled by a sensitive thermostat and a air-blast system and it has perfect uniformity.
Characteristics:
1.The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4.It’s unique condensating system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to mainten.
6.The water level controller is outside the box, easy to monitor.
7.The machine has truckles, convenient to move.
8.Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
9.It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10.It has Chinese and English instruction book, convenient to consult.
11.Divided into three types: common, light irradiance controlling, spraying
Specifications of Aging UV Test Chamber:
Studio Size | 24 sets of sample fixtures, 48pcs of samples in total | W1150 X H400 x D400mm |
Outside dimension | W1300×H550×D1480mm | W1400 X H1450 x D650mm |
Temperature range | RT+10~70°C | |
Temperature uniformity | ±2°C | |
Temperature fluctuation | ±0.5°C | |
Testing time | 0~999H, adjustable | |
Materials | Inside and Outside SUS#304 stainless steel | |
Humidity range | ≥90%RH | |
Controller | Korean TEMI programmable controller | |
Lamp power | 40W/Piece | |
Test cycle setting | Illumination, condensation and water spray test cycle is programmable | |
Irradiance | 1.0W/cm2 | |
Wavelength ultraviolet light | UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) | |
Distance from sample to lamp | 50±2mm (adjustable) | |
Centre distance between the lamp | 70mm | |
Standard Specimen Size | 75×150mm or 75×3000mm (special specitications to be described in the contact) | |
Required water depth for water channel | 25mm, automatically control | |
Protection system | Overload short circuit protection, over temperature protection, water lackin | |
Power | 220V/50Hz /±10% 4.5KW |
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
