Product Details:
|
| Test Time: | 1~999(S,M,H)adjustable | Power Supply: | AC220V 1Phase 15A |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Brand: | GSKA |
| Keyword: | Salt Spray Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Testing Room Capacity: | 60,120,270,480L / Customized |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

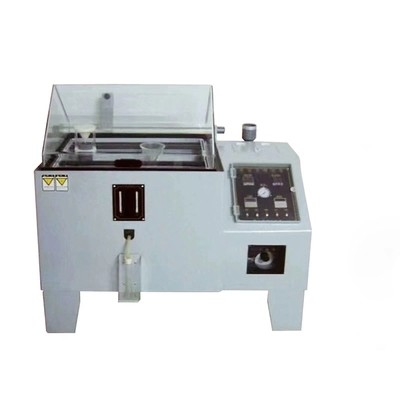

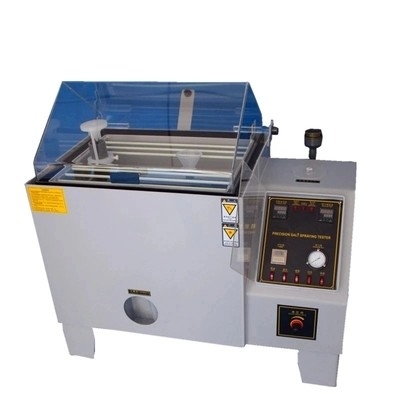

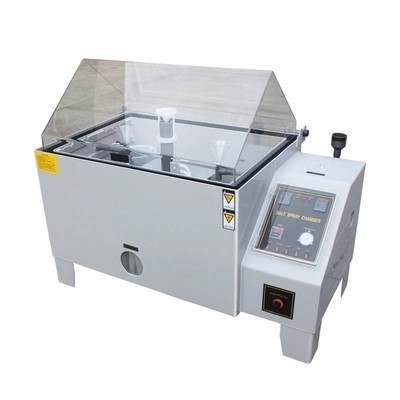

SUS304 Stainless Fog Salt Mist Testing Equipment Dustproof Antiwear OEM
Features:
Applicable Industries:
Salt Spray Test Machine Cyclic Corrosion Testers Salt Fog Cabinets Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Salt Spray Cycling Test Chamber can be used to simulated condition that more often meet at natural environment, and then deteriorated the natural environment to be tested, such as the salt spray, dry, wet, room temperature, low temperature environment, it is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Specifications :
| Volume(L) | 108 | 270 | 480 | customi-zable | ||
| Internal Size W×H×W(mm) |
600×400×450 | 900×500×600 | 1200×500×800 | |||
| External Size W×H×W(mm) |
1150×1090×672 | 1450×1200×842 | 2080×1285×1240 | |||
| Performance Index | Temperature Range | LaboratoryTemperature Range :RT~50℃ Saturated air barrel Temperature Range :RT~63℃ |
||||
| Temperature Deviation | ±1.0℃ | |||||
| Temperature Uniformity | ≤2.0℃ | |||||
| Temperature Fluctuation | ±0.5℃ | |||||
| Heating Rate | Test Room RT→+50℃≤60 min Pressure Barrel RT→+63℃≤60 min |
|||||
| Salt fog deposition | 1~2ml/80 square meter (At least 16 hours were collected and averaged) | |||||
| Spray Pressure | 70~170Kpa | |||||
| Spraying Mode | Continuous spray | |||||
| Test time | 1~999(S,M,H)adjustable | |||||
| PH | 6.5~7.2 3.0~3.2 | |||||
| Main Part | Control System | temperature controller | ||||
| PT100 thermocouple (armor), PID control | ||||||
| Spraying System |
|
|||||
| operate manual spray or set automatic spray according to program | ||||||
| Structural Features | Material Enclosure | Imported PVC polyethylene board is adopted | ||||
| Medicament refill cylinder | hidden type supplementary water gauge | |||||
| Pressurized air drum | SUS304# stainless steel high-pressure barrel | |||||
| Test Rack |
|
|||||
| Cover Material | imported European acrylic board | |||||
| Spray Tower | air atomizing nozzle, height can be adjusted | |||||
| Spray volume collector | Cone funnel with diameter of 100mm | |||||
| Heating System | Titanium alloy heat pipe, steam heating, P.I.D. control heating | |||||
| Brine Tank | Made of PVC board | |||||
| Saturated air barrel | SUS304 Stainless | |||||
| Drain line | acid and alkali resistant PVC piping | |||||
| Heater |
SUS316# stainless steel armoured heating tube (saturation barrel) |
|||||
| Standard Fittings |
|
|||||
| Safty Device | Leakage, short circuit, motor overheating, overload, over current protection | |||||
| Supply Voltage | AC220V 50Hz | |||||
| Environment Requirement | Temperature 5.0~+30.0℃,Humidity≤85%RH,Air Pressure 86Kpa~106Kpa | |||||
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
We also have rich experience in customizing environmental chambers, like large-size walk-in temperature and humidity chamber, cyclic salt spray chamber, special sand and dust test chamber.
