Product Details:
|
| Spray Form: | Programmable Spray | Power Supply: | AC220V 1Phase 15A |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Brand: | GSKA |
| Keyword: | Salt Spray Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Testing Room Capacity: | 60,120,270,480L / Customized |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

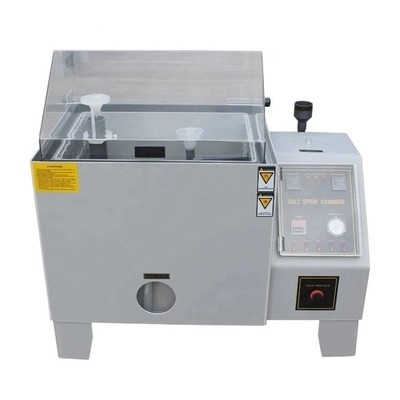

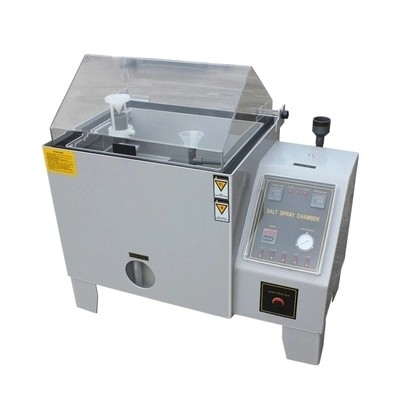

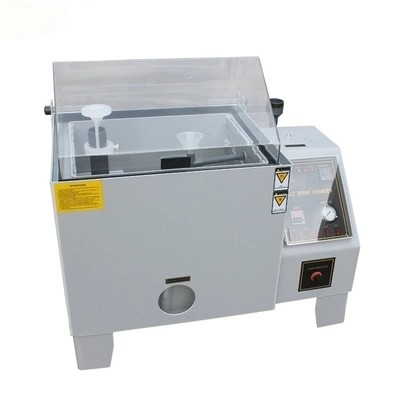

Rustproof 60Hz Salt Spray Test Apparatus Programmable LCD Touch Screen
Installation requirement for water and pressure:
Water quality requirement: industrial water or tap water with filter(filtered water PH is 6.5~7.2 ), or use pure water(Attention: mineral water contains minerals and can not use).
pressure requirement: water pressure 1~3kg to ensure normal filling water.
interface requirement: water inlet need use hose to connect with seal ring fixed in order to prevent leakage.
Applications:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Technical Parameters:
| Inner chamber size W×H×D(cm) | 60×45×40 | 90×60×50 | 120×80×50 | 160×100×50 | 200×100×60 | ||
| Exterior chamber size W×H×D(cm) | 107×58×103 | 138×80×115 | 170×95×121 | 225×120×125 | 265×120×135 | ||
| Temperature range | Box temperature | Room temperature to +50℃,±0.5℃ | |||||
| Air saturation barrel | Brine tank temperature~63℃,±0.5℃ | ||||||
| Brine tank temperature | Brine tank temperature~50℃,±0.5℃ | ||||||
| Saturated air pressure(kgm2) | 0.8~2.0 | ||||||
| Mist volume(ml/80cm²/h) | 0.5~3.0 | ||||||
| PH | Salt solution | 6.5~7.2 | |||||
| PH value of Copper acetate | 3.0~3.2 | ||||||
| Material | Exterior chamber material | P.V.C&P.P | |||||
| Interior chamber material | P.V.C&P.P | ||||||
| System | Spraying system | Air acid (base)liquid | |||||
| Heating system | SUS#Stainless steel high-speed heater | ||||||
| Controller | Hydrometer,salt meter,mist collector,glass bar | ||||||
| Other components | Digital electronic indicator+SSR+PID | ||||||
| Safety device | Over-heat protection circuit breaker, dehydration and over-heat prevention mechanism,overload indicator | ||||||
| Power supply | AC 1phase 220V 50/60Hz | ||||||
| Customization service | Non-standard or special requirements are all welcome | ||||||
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
