Product Details:
|
Test Time: | 1~999(S,M,H)adjustable | Temperature Uniformity: | ≤2.0℃ |
---|---|---|---|
Humidity Range: | 20%~98%RH | Testing Room Capacity: | 60,120,270,480L / Customized |
Temperature Fluctuation: | ±0.5℃ | Controller: | Programmable LCD Touch Screen Casters |
Air Pressure: | 86~ 106Kpa | Brand: | GSKA |
High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |

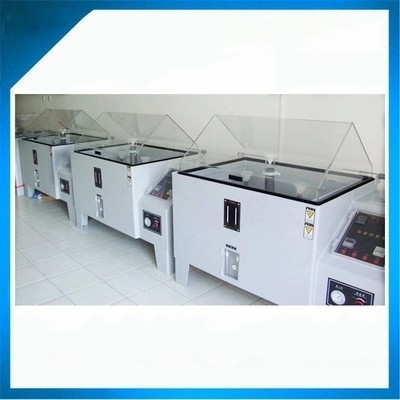

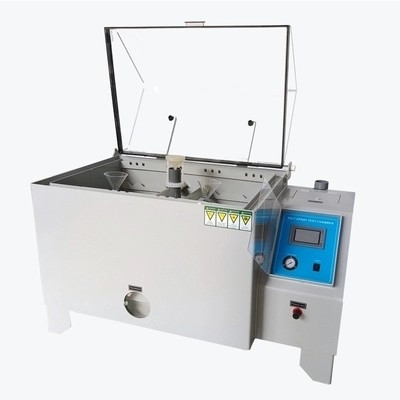

Easy To Clean Single Type Salt Spray Chamber SUS304 Stainless Steel Material
Enclosure structure:
The integral molding press is welded by high temperature, corrosion resistant, easy to clean, no leakage phenomenon.
Tower spray system, and equipped with salt filter system, no crystallization nozzle, salt spray distribution uniform, sedimentation free adjustment.
Box cover made of transparent material can clearly see the test items and spray condition inside the box.
Water seal structure is adopted between box cover and box, no salt spray overflow.
The line control panel and other components are fixed in a position convenient for inspection and maintenance. The door lock open side cover door is not only beautiful, but also convenient for maintenance.
Technical Parameters:
Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
Brine temperature | 35℃±1℃ 50℃±1℃ | ||
Testing room Capacity | 108L | 270L | 480L |
Brine tank capacity | 15L | 25L | 40L |
Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
Air pressure | 1.00±0.01kgf/cm2 | ||
Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
Testing room relative humidity | 85% above | ||
PH | 6.5~7.2 3.0~3.2 | ||
Spray form | Programmable spray (Including continuous and intermittent spray) | ||
power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Applications:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
