Product Details:
|
| Model Number: | GS-657X | Warranty: | 1 Year |
|---|---|---|---|
| Voltage: | 380V AC Grounded | Total Power: | 1000W |
| Axial Force Detection Range: | 20-500kN | Torque Detection Range: | 10-2000Nm |
| Bolt Specification: | M16-M30 | Bolt Length: | 55-280mm |
| High Light: | 10NM Dynamometer Torque,2000NM Dynamometer Torque |
||

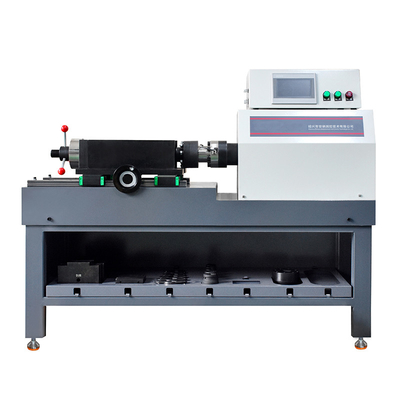

High Strength Bolt Intelligent Dynamometer Torque Detection Range Of 10-2000NM
Product overview
The detector can detect, display and print the axial force, torque and torque coefficient of large hexagon head high-strength bolt connection pair and torsional shear high-strength bolt connection pair M16, M20, M22, M24, M27, and M30. When the axial force reaches the value specified in the standard, the detector emits a buzzer and records the detection data. At the same time, the detector automatically calculates the torque coefficient according to the detected axial force and torque and automatically displays it. When a group of tests are completed, the detector automatically calculates the average axial force, average torque and average torque coefficient of N specimens.
It has the function of parameter setting, automatic calculation, calibration and verification. According to the detection requirements of high strength bolts, it also sets the monitoring of peak value keeping and the sensor overload protection prompt and other functions.
Relevant standard
GB 50205-2020 Code for Acceptance of Construction Quality of Steel Structure Engineering
GB/T3632-208 "torsional shear type high strength bolt connection pair for steel structure"
Equipment characteristics
1. It can detect the axial force, torsion and torque coefficient of the large hexagonal high-strength bolt connection pair.
2. It can detect the axial force, torque and torque coefficient of the torsional and shear type high-strength bolt connection pair. (can do M27, M30 bolts) is the same kind of products.
3. It can resist the torsion setting of slip coefficient, eliminating the tedious process of manual setting.
4, the host size is in line with ergonomics, easy to operate.

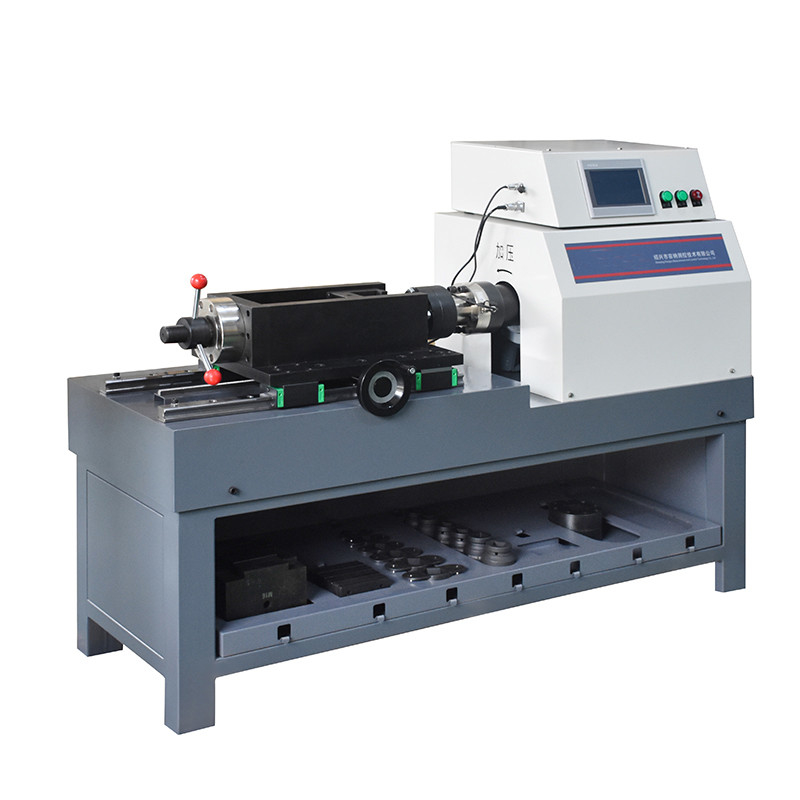

5. The bolt torsional shear seat is installed on the linear guide rail, and the specimen is easily installed and adjusted.
6, the software design is humanized, the test process is completed by one key.

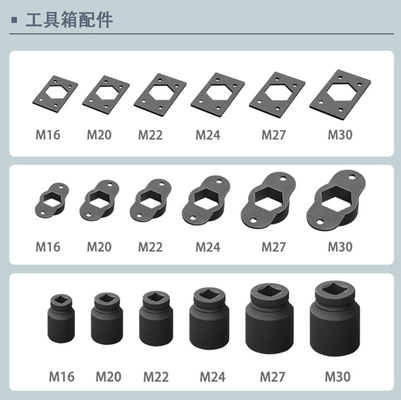

7. The lower end of the body of the main engine is equipped with a toolbox, which makes the work of the test operator more convenient.
8. The input terminal adopts the reducer to load at uniform speed, which greatly improves the consistency, repeatability and experimental results
| Voltage | 380V AC grounded |
| Total power | 1000W |
| Axial force detection range | 20-500kN |
| Torque detection range | 10-2000Nm |
| Bolt specification | M16-M30 |
| Bolt length | 55-280mm |
| Test accuracy | 1 machine with axial force ±1.0% torque ±1.0% |
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15-30 working days, if we have finished products, we can arrange delivery within 15 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
