Product Details:
|
| Model Number: | GSA45-8 | Warranty: | 1 Years |
|---|---|---|---|
| Authentication Certificate: | CE SGS ROHS UL | Place Of Origin: | Donggaun,china |
| Power Supply: | AC220V | Frequency: | 50HZ |
| High Light: | AC220V Static Load Tester,3Kw Dynamic Load Tester |
||
AC220V 3Kw safety net safety belt overall dynamic load and static load tester
Main use
The instrument can be used for falling suspension seat belt and safety net overall dynamic load test, dynamic load test parts; Overall static load test of belt in rod operation, overall static load test of zone restricted belt, overall static load test of falling suspension belt, etc.
Instrument characteristics
High precision dynamic force sensor
High precision rolling encoder
High - speed single - chip data acquisition and processing system, automatically lock the maximum impact value
Static part automatic control force, digital display loading force value
Pneumatic release provides more stable suction and release
Power supply AC220V 50HZ 3KW
Applicable standard
GB/T 6096-2020 "Fall Protection Safety Belt system performance test Method"
GB/T 5725 -- 2009 Safety Net

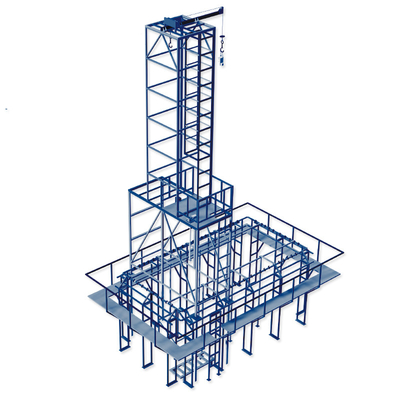

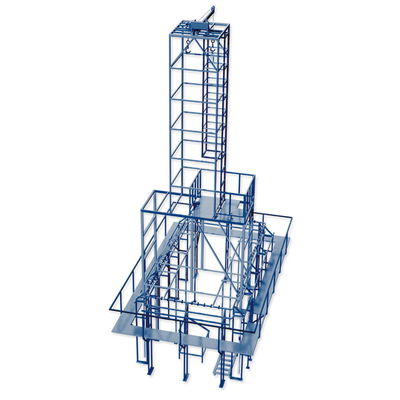

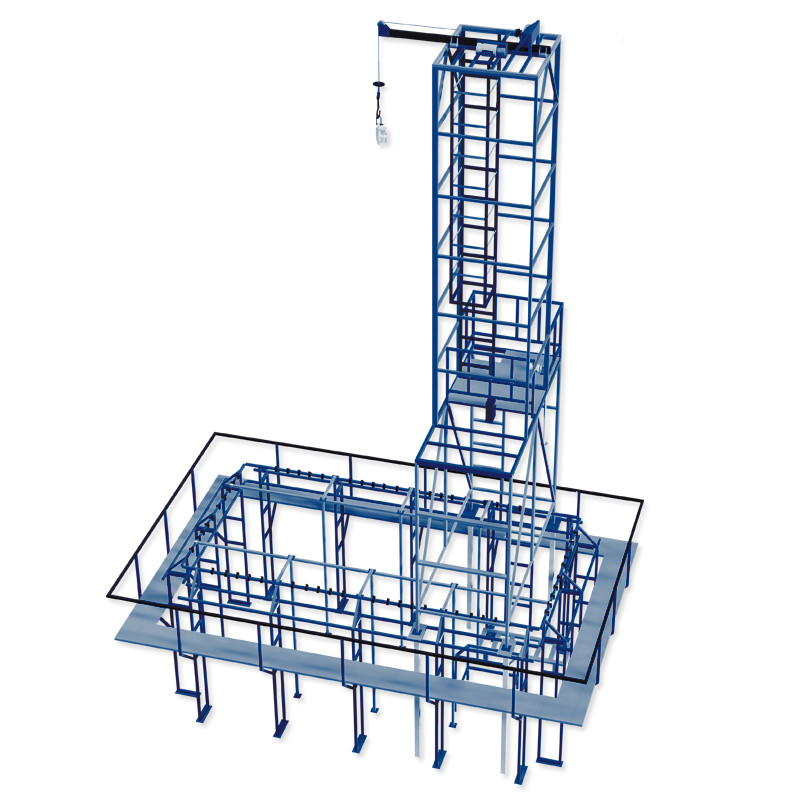

Assembly of test rack
1. According to the drawings, the embedded iron block required for the installation and fixing of the test rack is embedded in the test site.
2. Weld the support frame in sequence on the embedded iron block.
3. Weld the support on the support frame and weld the support completely.
4. Install pedals and safety handrails, install pedals on the beam of the bracket and install the safety handrails on the top of the bracket, and leave a test opening.
5. After installing the pedal and safety handrail, fix the test frame for installing the safety net on the bracket.

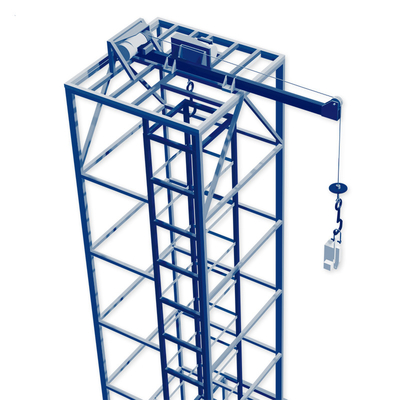

6. For the installation of the suspension frame, install the suspension frame at the position of the test opening, as shown in Figure 7, and fix several suspension frames in turn to form the suspension frame meeting the test height, and assemble the complete test frame.
7. After assembling the test rack, install the safety net, complete with all the equipment required for the test in the required position for preparation before the test.
Main test area
1, safety net impact performance test
2, safety net puncture performance test
3. Overall static load test of belt in rod operation
4, rod operation safety belt overall slip test
5. Overall dynamic load test of falling suspension seat belt
FQA:
1. Are your company a trading one or a factory?
Factory ,13years focusing on test instruments field,3 years exporting experience.Our factory is in Dongguan, Guangdong, China
2. After an order is placed, when to deliver?
Usually about 15-30 working days, if we have finished products, we can arrange delivery within 15 working days.
Please note that our production lead time depends on the specific project and the number of projects.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.
4. What about the services and product' quality?
Service: ,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
