Product Details:
|
| Place Of Origin: | Dongguan China | Temperature Uniformity: | ≤2.0℃ |
|---|---|---|---|
| Pressurized Air Drum: | SUS304# Stainless Steel High-pressure Barrel | Testing Room Capacity: | 60,120,270,480L / Customized |
| Test Time: | 1~999(S,M,H)adjustable | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Brand: | GSKA |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

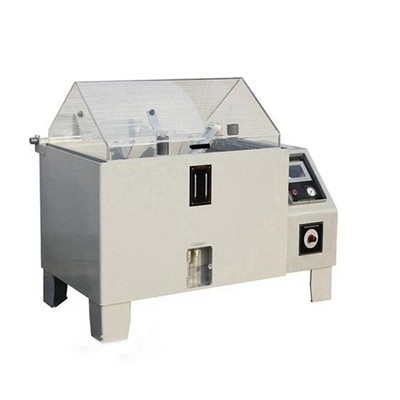

Intelligent Temperature Control Instrument Water Spray Test Chamber AC220V 50Hz

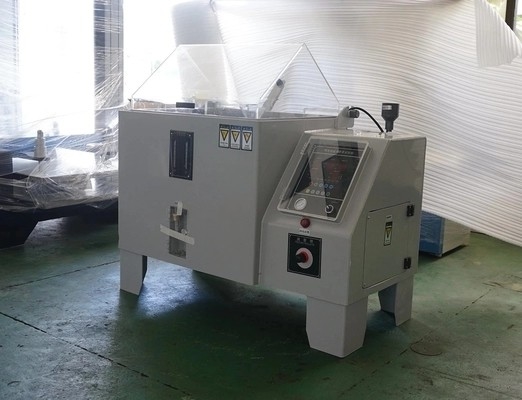

The external structure:
1, test box cover: house type bevel Angle 110 degrees perspective cover, can clearly observe the indoor test conditions;
2. Isolation of water tank: use watertight sealing cover to avoid salt spray leakage;
3. Measuring cylinder: collect the spray amount of each test, 50ml is the highest scale;
4, saturated air bucket: placed at the bottom of the control box, made of SUS#304 stainless steel plate, play the role of filtration, heating, humidification, so that the purified air reaches the saturation temperature and humidity to the nozzle spray, saturation device has automatic water refill function;
5. Pressure regulating valve: manually adjust the inlet pressure and spray pressure. The intake pressure is controlled at 0.3mpa; The spray pressure is controlled at 0.07-0.17mpa. (The above pressure has been adjusted before delivery, under normal circumstances, the user does not need to adjust again)
6, pressure gauge: the pressure shown by the pressure gauge pointer is the pressure when the air saturated air barrel conveys the spray nozzle;
7, fill the water tank: automatically or manually fill the saturated bucket water;
8. Fog exhaust pipe: PVC hard plastic pipe with a diameter of 50. When the salt spray test box is working, the pressure caused by the spray is leaked out, and the excess water in the box is also spilled.
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing room temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room Capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Applications:
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test Ka: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency
Characters:
1. Use special machine structure which can meet temperature and humidity well distribution.
2. Use environment-friendly refrigerant which meets international standard.
3. LCD display screen uses dialog box operating easy and user-friendly.
4. When fault occurs, display failure causes to help troubleshooting.
5. Have safety protection equipment and power failure memory.
6. Connect with computer, recorder(under user needs)
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
