Product Details:
|
| Spray Quantity: | 1.0~2.0 Ml / 80cm2 / Hr | Power Supply: | AC220V 1Phase 15A |
|---|---|---|---|
| Humidity Range: | 20%~98%RH | Brand: | GSKA |
| Keyword: | Salt Spray Test Chamber | Controller: | Programmable LCD Touch Screen Casters |
| Air Pressure: | 86~ 106Kpa | Testing Room Capacity: | 60,120,270,480L / Customized |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

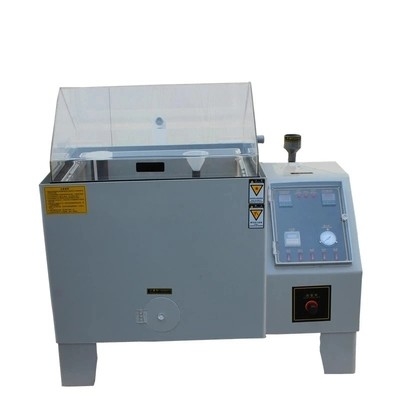

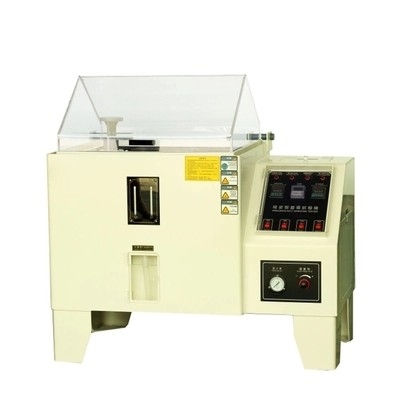

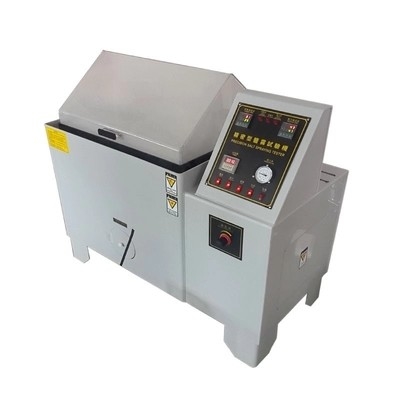

Programmable Control Salt Spray Test Chamber AC 220V 15A 1 Phase
Applicable Industries:
Salt Spray Test Machine Cyclic Corrosion Testers Salt Fog Cabinets Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Salt spray tests are conducted in a closed testing chamber. A salt water solution is applied to a sample via a spray nozzle. This dense salt water fog is used to imitate a corrosive experiment. After a period of time, which is dependent on the corrosion resistance of a product, the appearance of oxides is evaluated. The more resistant the product is, the longer it takes for the oxides to appear. Testing periods can take between 24 and 1,000 hours or more for certain coatings.
Specifications:
1. New Style Laboratory Use Salt Fog Spray Test Chamber Salt Fog Lab Equipment is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4. Control System High precision P.I.D. temperature control meter with its error ±0.1°C.
Technical Parameters:
| Inside box size(cm) | 60x45x40 | 90x60x50 | 120x80x50 |
| Outside box size(cm) | 107x60x118 | 141x88x128 | 190x110x140 |
| Testing rooom temperature | Salt test (NSS ACSS)35℃±1℃/ Corrosion Test (CASS)50℃±1℃ | ||
| Pressure barrel temperature | Salt test (NSS ACSS)47℃±1℃/ Corrosion Test (CASS)63℃±1℃ | ||
| Brine temperature | 35℃±1℃ 50℃±1℃ | ||
| Testing room capacity | 108L | 270L | 480L |
| Brine tank capacity | 15L | 25L | 40L |
| Salt concentration | The concentration of sodium chloride 5% or the 5% concentration of sodium chloride add 0.26g per liter of copper chloride (CuCl2 2H2O) | ||
| Air pressure | 1.00±0.01kgf/cm2 | ||
| Spray volume | 1.0~2.0ml/80cm2/h (working at least 16 hours, then take the average) | ||
| Testing room relative humidity | 85% above | ||
| PH | 6.5~7.2 3.0~3.2 | ||
| Spray form | Programmable spray (Including continuous and intermittent spray) | ||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A |
Advantage:
1 Programmable control, touch screen operation
2. It can spray regularly, intermittently and evenly
3.24 hours online
4.Sample chamber of each model
5. Best price, fast delivery
6.OEM,ODM
7.Oversea offices
8.Own import and export business license
9.ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
