Product Details:
|
| Warranty: | 1 Year | Spray Quantity: | 1~2ml/80cm2/h |
|---|---|---|---|
| Certification: | CE | Temperature Range: | Temperature Range:35~55℃ |
| Model Numbe: | GSA-621 | Sensor: | Pt100 Platinum Resistance |
| Power: | Electronic | Spray Way: | Tower Spray |
| High Light: | UV Weathering Test Chamber,Accelerated Weathering Chamber |
||

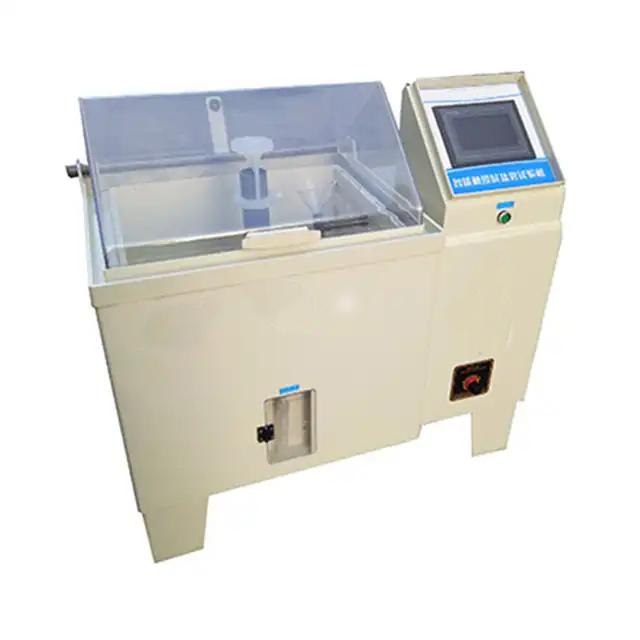

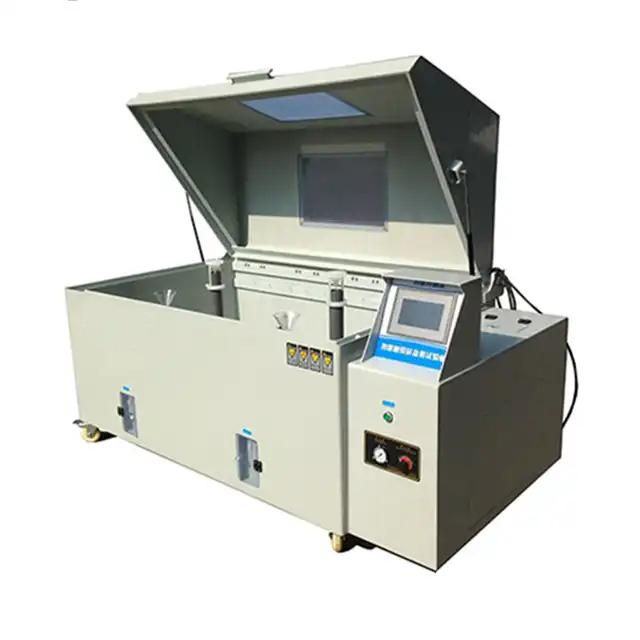

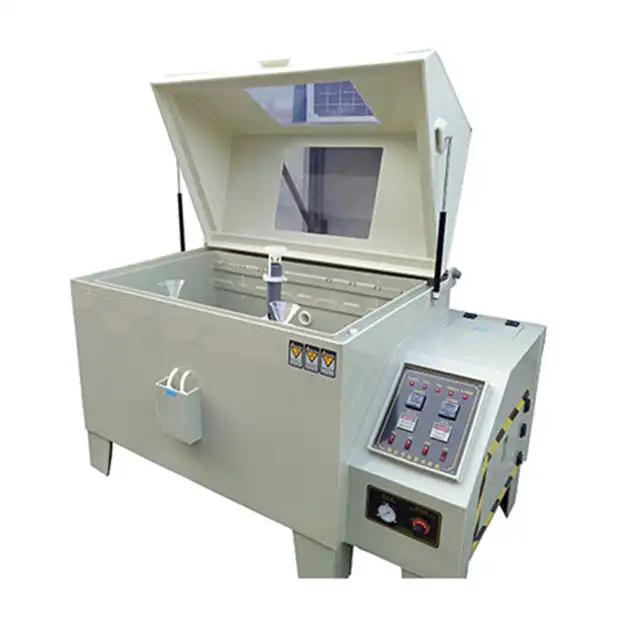

35℃-55℃ solar panel salt spray test box, used to test the corrosion of materials
product description:
Product Features:
1.Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2.Reservoirs with mixing system on stand.
3.Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4.Exposure zone lined with corrosion-resistant PVC sheets.
5. Clear cover allows viewing of test conditions.
6.Peaked cover prevents dripping of condensation onto samples.
7. Water seal and water level protection system.
8. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9. Automatic DI water fills to humidifying tower.
Specifications:
|
salt spray test chamber
|
||||||
| GSA-621-A | GSA-621-B | GSA-621-C | GSA-621-D | GSA-621-E | GSA-621-F | |
| Workroom Sizes W*D*H(cm) | 50*60*45 | 50*90*60 | 75*110*60 | 100*130*60 | 85*160*90 | 100*200*80 |
| Outer diemension W*D*H(cm) | 95*110*170 | 95*137*185 | 120*157*185 | 145*177*185 | 130*207*215 | 145*247*205 |
| Power(kw) | 2 | 4 | 5 | 6 | 7.5 | 9 |
| Temperature Range | 35℃~55℃ | |||||
| Temperature Fluctuation | ≤ ±0.5℃ | |||||
| Temperature Uniformity | ≤ ±2℃ | |||||
| Temperature precision |
±1℃
|
|||||
| Test chamber temperature | NSS ACSS 35±1℃ CASS: 55±1℃ | |||||
| Saturated air barrel temperature | NSS ACSS 37±1℃ CASS: 57±1℃ | |||||
| Brine temperature | 35±1℃ | |||||
| Spray quantity | 1.0~2.0 ml/ 80cm2 / hr | |||||
| PH | NSS ACSS6.5~7.2 CASS3.0~3.2 | |||||
| Multiple safety protection devices |
Water shortage/ over temperture/ phase protection
|
|||||
| Standard accessories |
Test salt, measure bucket, tool etc 1 set
|
|||||
FAQ:
Q : Are you manufacturer?
A: Yes, we are manufacturer with more than 10 years' experience.
Q : What are your Payment Terms?
A: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Q: What's your Minimum Order Quantity?
A: Any order quantity is warmly welcomed.
Q : Do you have English Manual for each machinery?
A: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Q : Can I print my Logo on the machine?
A: Yes, sure.
Q : Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.
Q : What shall we do if breakdown occurs?
A: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the
notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s
requirements.
Q : What are your modes of transportation?
A: Courier service, Air transport, Sea Transport.
Q: Do you support overseas installtion and debugging?
A: Yes, normally We will despatch a profesional team with translater to the field to complete the whole project.
Q: If any breakdown, do you have any prompt ways to support us?
A: Yes, we have on-line services to make one-one explanation.
