Product Details:
|
| Force Accuracy: | +-1.0% | Dimension: | 690mm * 570mm * 1600mm |
|---|---|---|---|
| Effective Test Force Range: | 0.02/100~100% | Speed 2: | Ball Screw + Servo System |
| Elongation Accuracy: | 0.001mm | Operation Method: | Computer Control |
| Brand Name: | GSKA | Certification: | CE SGS ROHS UL CE |
| High Light: | Tensile Testing Machine,Universal Testing Machine |
||

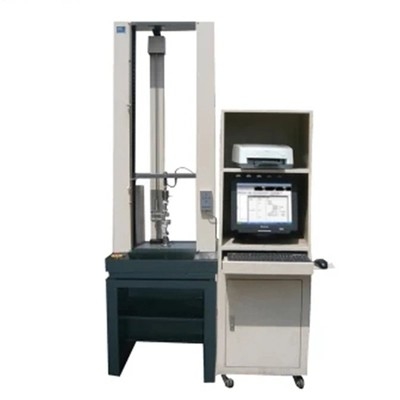

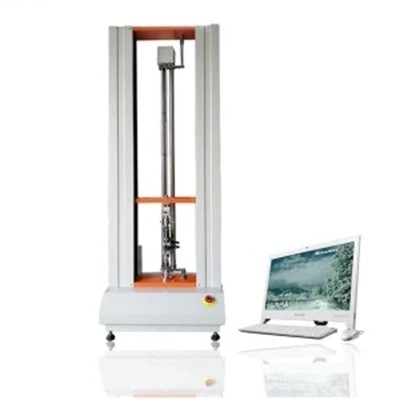

Universal tensile bending shear tear stripping testing machine
Feature:
1. Measurement and control software using Windows 7 operating system platform, graphical and graphical software interface, flexible data processing, modular programming language VB, safety limit protection.
2. With automatic algorithm generation, automatic test report editing capabilities
3. Calculate the maximum force, yield strength, non-proportional yield strength, average peel force, elastic modulus
Control software introduction:
1. Test curve: force value - deformation, force value - time, stress - strain, stress - time, deformation - time, strain - time
2. Unit switching: N, kN, lbf, Kgf, g
3. Operating language: English
4. Interface: USB
5. Provide curve processing function
6. Multi-sensor support function (optional)
7. The system provides the custom formula of parameter formula, the user can define the parameter calculation formula according to the requirements and edit the report according to the need
8. Test data using database management, automatically save all test data and curves
9. Test data can output into EXCEL form
10. Multiple test data and curves for the same set tests can be printed in single report
11. Historical data can be added together for comparative analysis
12. Can be automatically calibrated: calibration process, enter the standard value in the menu, the system can automatically calibrate the indication value.
Technical Parameters:
| Maximum force | 0-5kN |
| Force accuracy | ± 1.0% |
| Force resolution | 1/250000 |
| Effective stretching stroke (excluding fixtures) |
900mm |
| Accuracy: ± 1.0% | |
| Resolution: 0.001mm | |
| Effective test width | 360mm |
| Deformation | Accuracy Indication within ± 0.5% |
| Resolution: 0.005mm | |
| Speed | 0.01mm / min ~ 500mm / min (ball screw + servo system) |
| Print function | Print out the maximum force, tensile strength, elongation at break and corresponding curve |
| Power | AC220V ± 5% 50Hz or 60HZ |
| Dimension | 690mm × 570mm × 1600mm |
| Weight | 180kg |
Customer Support Services:
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
